PANDUIT

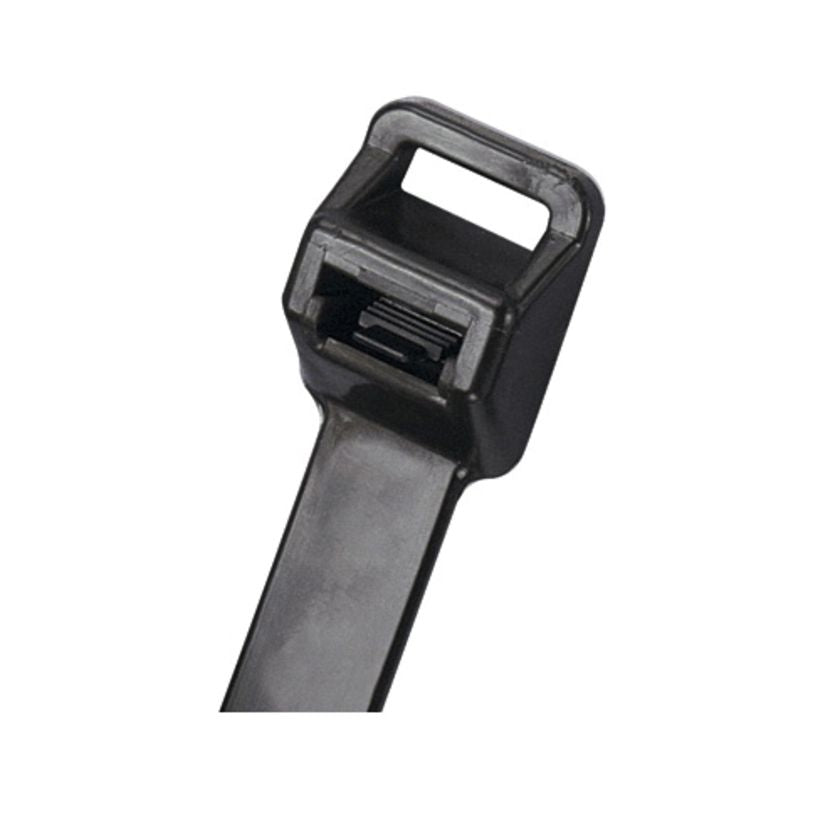

Dây rút Panduit 511mm x 12.7mm Black [PRT5EH-Q0]

Dây rút Panduit 511mm x 12.7mm Black [PRT5EH-Q0]

48.090 VND
48.090 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PRT5EH-Q0

MÔ TẢ SẢN PHẨM

Panduit PRT5EH-Q0 Releasable Lashing Cable Ties have a release tab that permits easy release where changes are anticipated during development, production or servicing in the field. Ideal for heavy duty applications. Extra-Heavy cross section, 20.1” (511mm) length. For Indoor or outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 25.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Color Black
Environment Indoor/Outdoor
Material Weather Resistant Nylon 6.6
Standards Met UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), CSA Certified, RoHS and CE Compliant
Resistance Properties UV Resistant
For Use With Hand Install Only
Maximum Bundle Diameter (In.) 5
Minimum Bundle Diameter (In.) 0.5
Maximum Bundle Diameter (mm) 127
Minimum Bundle Diameter (mm) 12.7
Minimum Installation Temperature (°C) -20
Sub Brand Pan-Ty®
Minimum Installation Temperature (°F) -4
Maximum Operating Temperature (°C) 85
Minimum Operating Temperature (°C) -60
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°F) -76
Minimum Loop Tensile Strength (N) 1.112
Minimum Loop Tensile Strength (lb) 250
Overall Length (In.) 20.1
Overall Length (mm) 511
Body Width (In.) 0.5
Body Width (mm) 12.7
Part Features Release tab permits easy release and re-use where changes are anticipated. Used for heavy duty applications.
