PANDUIT

Dây rút Panduit 198mm x 4.83mm Natural [PLWP2S-D]

Dây rút Panduit 198mm x 4.83mm Natural [PLWP2S-D]

6.250 VND
6.250 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLWP2S-D

MÔ TẢ SẢN PHẨM

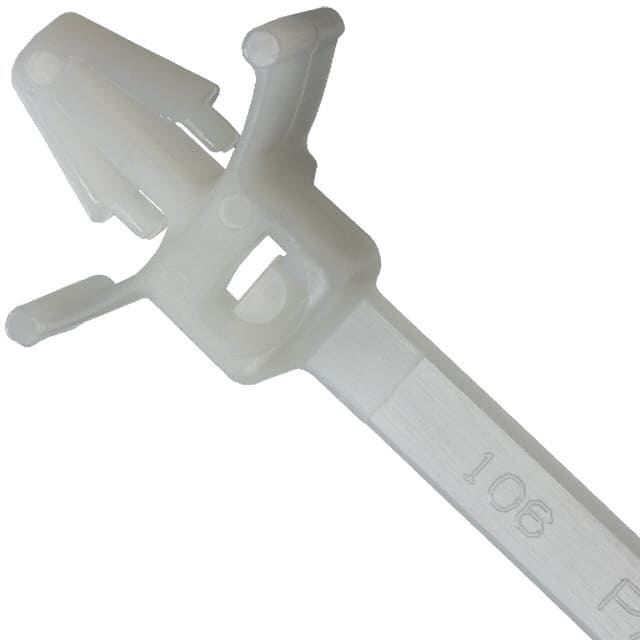

Panduit PLWP2S-D Locking Wing Mount Push Ties use an all-in-one design to attach bundles to another surface using a stable, secure, rattle-free installation. Standard cross section, 7.8” (198mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 500.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Natural
Environment Indoor
Sub Brand Pan-Ty®
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
Material Nylon 6.6
Resistance Properties NA
Maximum Bundle Diameter (In.) 1.75
Maximum Bundle Diameter (mm) 44.5
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.06
Minimum Bundle Diameter (mm) 1.5
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 222
Minimum Loop Tensile Strength (lb) 50
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 7.8
Overall Length (mm) 198
Body Width (In.) 0.19
Body Width (mm) 4.8
Body Thickness (In.) 0.052
Body Thickness (mm) 1.3
Standards Met UL Recognized (File #E56854), RoHS Complaint
