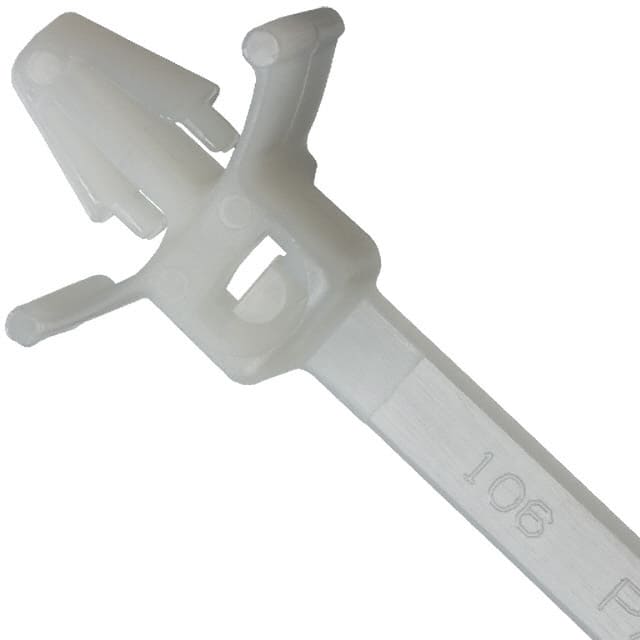

Dây rút Panduit 109mm x 2.5mm Natural [PLWP1M-D]

Dây rút Panduit 109mm x 2.5mm Natural [PLWP1M-D]

5.390 VND
5.390 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLWP1M-D

MÔ TẢ SẢN PHẨM

Panduit PLWP1M-D Locking Wing Mount Push Ties use an all-in-one design to attach bundles to another surface using a stable, secure, rattle-free installation. Miniature cross section, 4.3” (109mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 500.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Natural
Environment Indoor
Sub Brand Pan-Ty®
For Use With GTS-E, GS2B-E, PTS, PPTS, STS2
Material Nylon 6.6
Resistance Properties NA
Maximum Bundle Diameter (In.) 0.87
Maximum Bundle Diameter (mm) 22.1
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.06
Minimum Bundle Diameter (mm) 1.5
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 80
Minimum Loop Tensile Strength (lb) 18
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 4.3
Overall Length (mm) 109
Body Width (In.) 0.098
Body Width (mm) 2.5
Body Thickness (In.) 0.044
Body Thickness (mm) 1.1
Standards Met UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854, RoHS Complaint
Part Features Cable tie, mount and fastener in a single part. Used to attach bundles to another surface. Anchor is easily pressed into a preformed hole and locks in place.
