PANDUIT

Dây rút Panduit 152mm x 3.43mm Natural [PLWP1.5I-D]

Dây rút Panduit 152mm x 3.43mm Natural [PLWP1.5I-D]

5.780 VND
5.780 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLWP1.5I-D

MÔ TẢ SẢN PHẨM

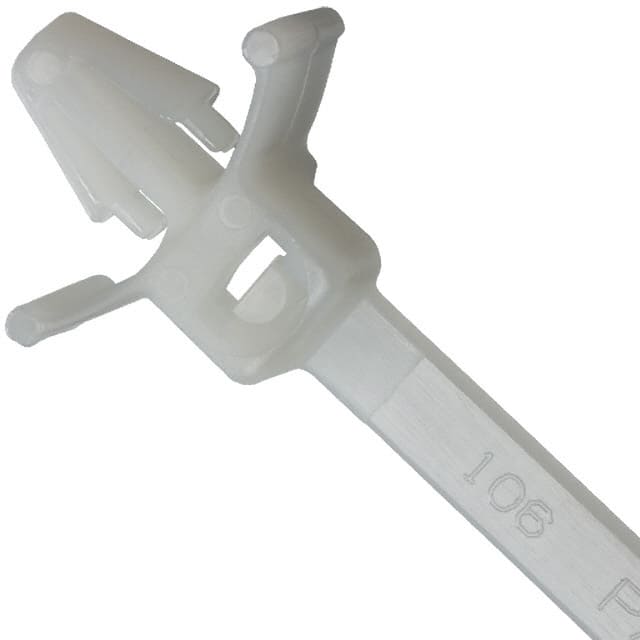

Panduit PLWP1.5I-D Locking Wing Mount Push Ties use an all-in-one design to attach bundles to another surface using a stable, secure, rattle-free installation. Intermediate cross section, 6” (152mm) length. For indoor use, made of Nylon 6.6, are natural in color and come in packages of 500.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Natural
Environment Indoor
Sub Brand Pan-Ty®
For Use With GTS-E, GS2B-E, PTS, PPTS, STS2
Material Nylon 6.6
Resistance Properties NA
Maximum Bundle Diameter (In.) 1.25
Maximum Bundle Diameter (mm) 31.8
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.06
Minimum Bundle Diameter (mm) 1.5
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 178
Minimum Loop Tensile Strength (lb) 40
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 6
Overall Length (mm) 152
Body Width (In.) 0.135
Body Width (mm) 3.4
Body Thickness (In.) 0.045
Body Thickness (mm) 1.2
Standards Met UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), RoHS Complaint
Part Features Cable tie, mount and fastener in a single part. Used to attach bundles to another surface. Anchor is easily pressed into a preformed hole and locks in place.
