PANDUIT

Dây rút Panduit 775mm x 7.62mm Black [PLT9LH-L0]

Dây rút Panduit 775mm x 7.62mm Black [PLT9LH-L0]

24.240 VND
24.240 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT9LH-L0

MÔ TẢ SẢN PHẨM

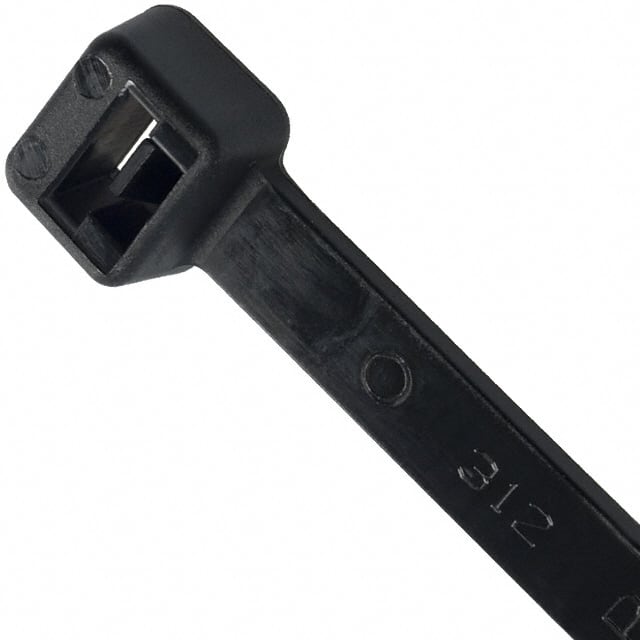

Panduit PLT9LH-L0 Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Light-heavy cross section, 30.5" (775mm) length. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 50.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor/Outdoor
Sub Brand Pan-Ty®
For Use With GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Material Weather Resistant Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 9
Maximum Bundle Diameter (mm) 229
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.188
Minimum Bundle Diameter (mm) 4.8
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 534
Minimum Loop Tensile Strength (lb) 120
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 30.5
Overall Length (mm) 775
Body Width (In.) 0.3
Body Width (mm) 7.6
Body Thickness (In.) 0.075
Body Thickness (mm) 1.9
Standards Met CSA Certified, RoHS Complaint
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
