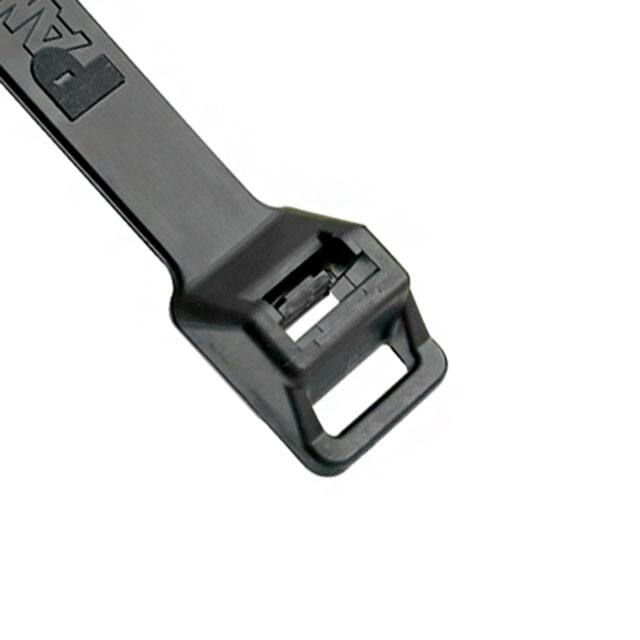

Dây rút Panduit 564mm x 12.7mm Black [PLT6EH-C0]

Dây rút Panduit 564mm x 12.7mm Black [PLT6EH-C0]

29.060 VND
29.060 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT6EH-C0

MÔ TẢ SẢN PHẨM

Panduit PLT6EH-C0 Lashing Cable Ties are ideal for heavy duty applications. Extra-Heavy cross section, 22.2” (564mm) length. For Indoor or outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 100.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor/Outdoor
Sub Brand Pan-Ty®
For Use With GS4EH-E, ST3EH
Material Weather Resistant Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 6
Maximum Bundle Diameter (mm) 152.4
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.5
Minimum Bundle Diameter (mm) 12.7
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 1112
Minimum Loop Tensile Strength (lb) 250
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 22.2
Overall Length (mm) 564
Body Width (In.) 0.5
Body Width (mm) 12.7
Body Thickness (In.) 0.052
Body Thickness (mm) 1.9
Standards Met UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), CSA Certified, RoHS Complaint
Part Features One piece construction provides consistent, reliable performance. Low thread force. Used for heavy duty applications.
