PANDUIT

Dây rút Panduit [PLT5EH-C]

Dây rút Panduit [PLT5EH-C]

20.830 VND
20.830 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT5EH-C

MÔ TẢ SẢN PHẨM

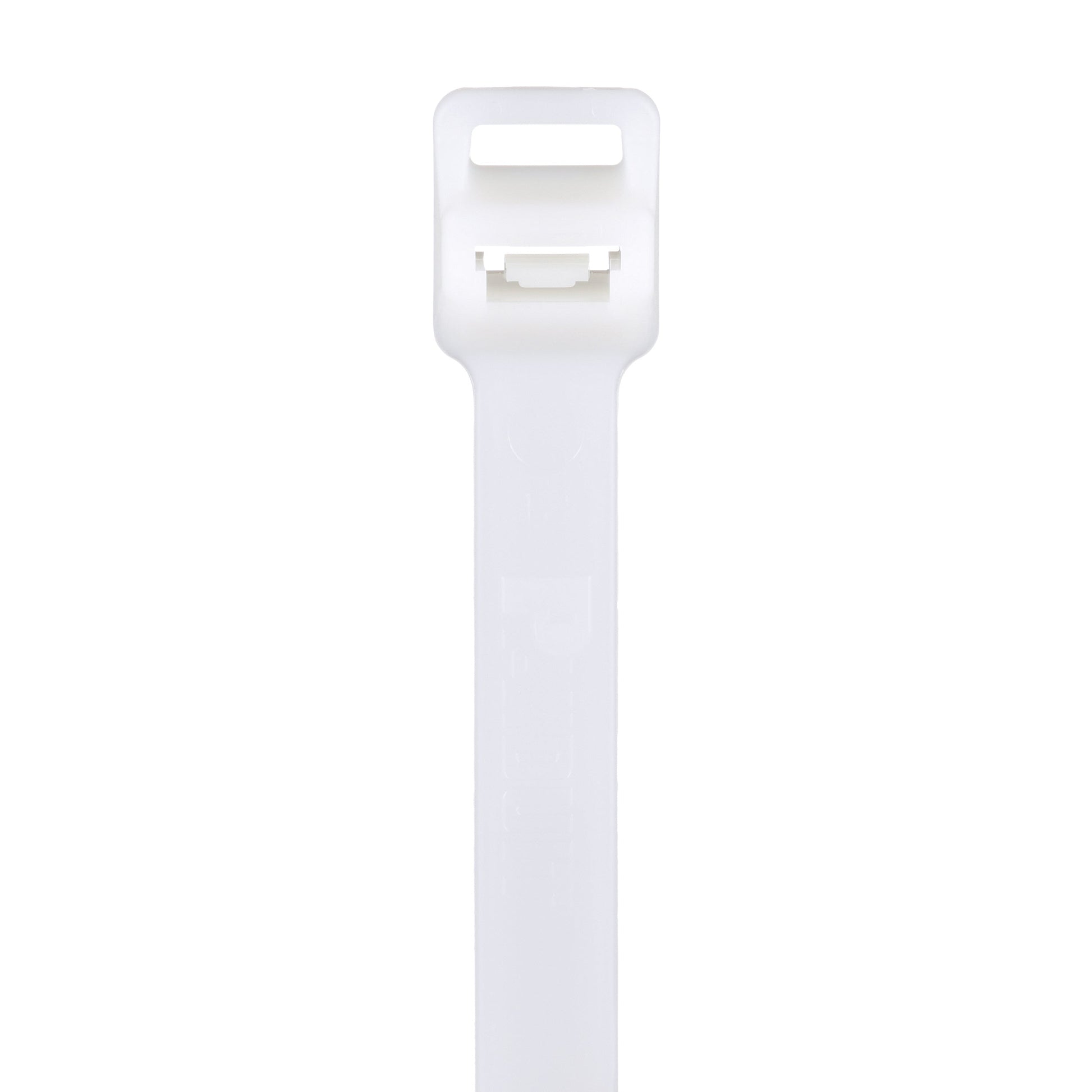

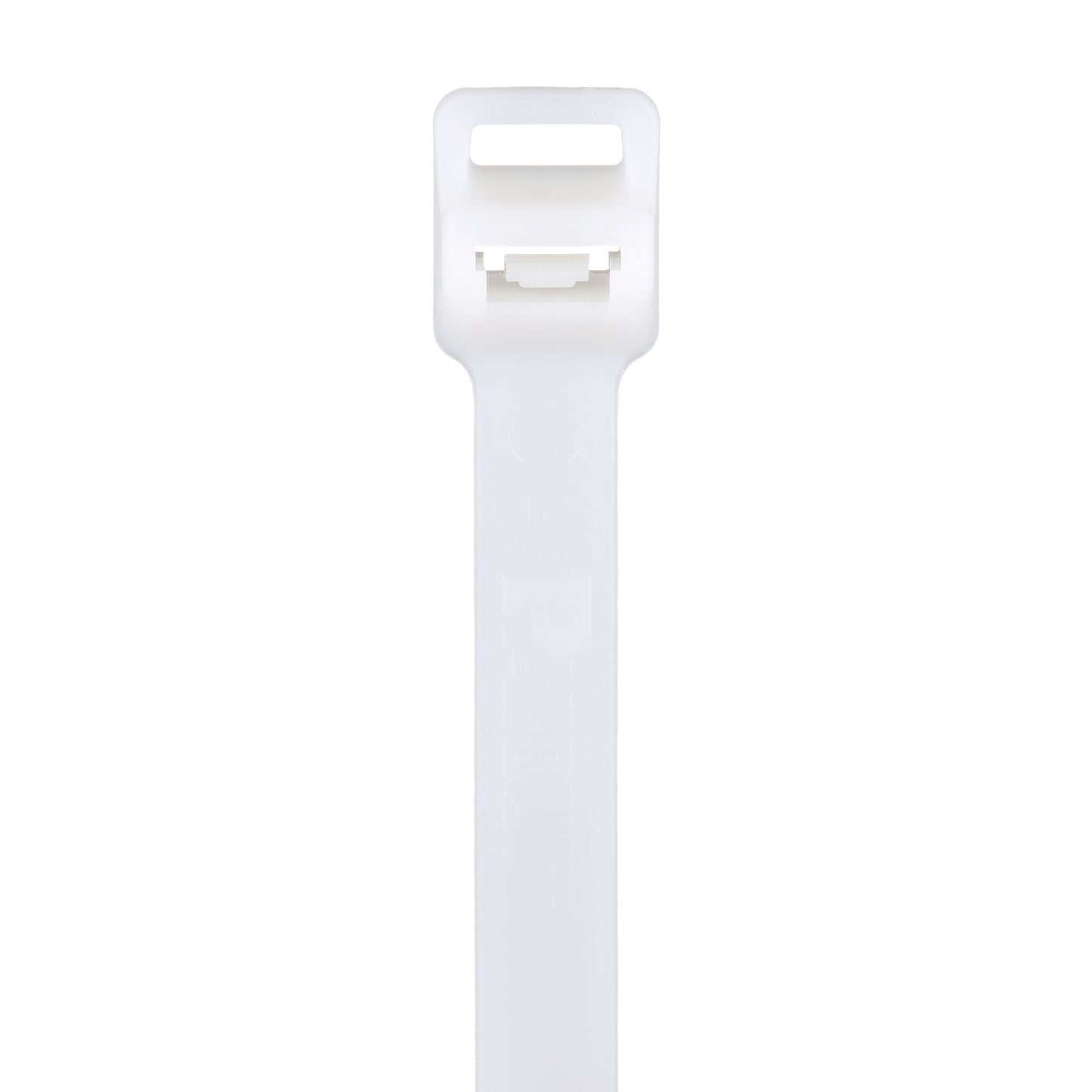

Panduit PLT5EH-C Lashing Cable Ties are ideal for heavy duty applications. Extra-Heavy cross section, 20.1” (511mm) length. For Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Natural
Environment Indoor
Sub Brand Pan-Ty®
For Use With GS4EH-E, ST3EH
Material Nylon 6.6
Resistance Properties NA
Maximum Bundle Diameter (In.) 5
Maximum Bundle Diameter (mm) 127
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.5
Minimum Bundle Diameter (mm) 12.7
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 1112
Minimum Loop Tensile Strength (lb) 250
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 20.1
Overall Length (mm) 511
Body Width (In.) 0.5
Body Width (mm) 12.7
Body Thickness (In.) 0.075
Body Thickness (mm) 1.9
Standards Met CSA Certified, UL 62275 Compliant (Type 2, 21), RoHS Complaint
Military Cross Reference Number MS3367-20-9
Part Features One piece construction provides consistent, reliable performance. Low thread force. Used for heavy duty applications.
View full details
