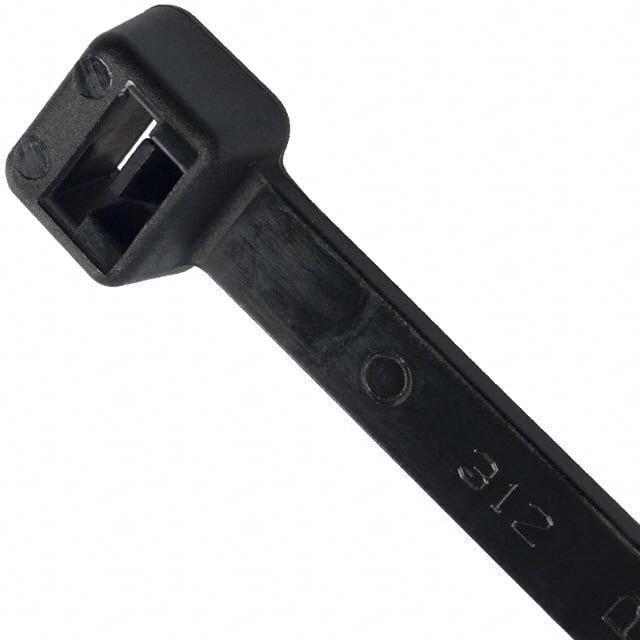

Dây rút Panduit 368mm x 4.83mm Black [PLT4S-M120]

Dây rút Panduit 368mm x 4.83mm Black [PLT4S-M120]

14.960 VND
14.960 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT4S-M120

MÔ TẢ SẢN PHẨM

Panduit PLT4S-M120 Locking Cable Ties are designed to satisfy the needs of solar applications and resistance to corrosive elements such as zinc chloride applications, while delivering consistent performance and reliability. Cable tie of choice for making attachments to galvanized surfaces. Standard cross section, 14.5" (368mm) length. Made of Weather Resistant Nylon 12 with high resistance to ultraviolet light, are black in color and come in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor/Outdoor
Sub Brand Pan-Ty®
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
Material Weather Resistant Nylon 12
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 4
Maximum Bundle Diameter (mm) 102
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 90
Maximum Operating Temperature (°F) 194
Minimum Bundle Diameter (In.) 0.06
Minimum Bundle Diameter (mm) 1.5
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 178
Minimum Loop Tensile Strength (lb) 40
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 14.5
Overall Length (mm) 368
Body Width (In.) 0.19
Body Width (mm) 4.8
Body Thickness (In.) 0.052
Body Thickness (mm) 1.3
Standards Met RoHS Compliant
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
