PANDUIT

Dây rút Panduit 365mm x 4.83mm Blue [PLT4S-C86]

Dây rút Panduit 365mm x 4.83mm Blue [PLT4S-C86]

9.020 VND
9.020 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT4S-C86

MÔ TẢ SẢN PHẨM

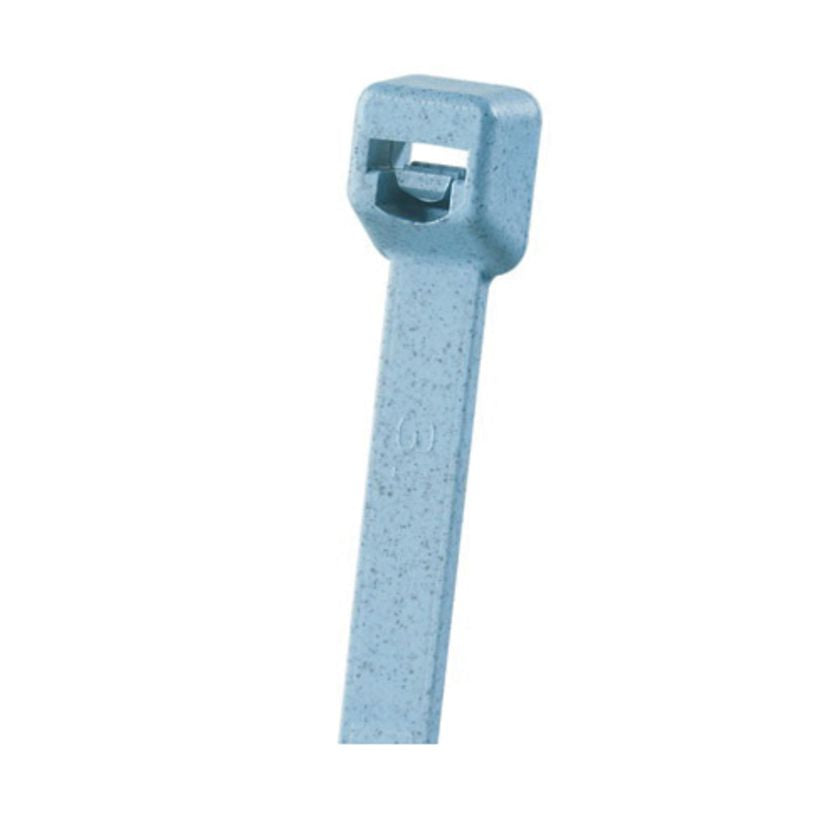

Panduit PLT4S-C86 Metal Detectable Cable Ties are designed to help the food, beverage and pharmaceutical industries meet product manufacturing safety standards. Featuring metal impregnated material, these metal detectable products are identifiable by metal detection equipment. Additionally, the distinct blue color facilitates quick visual detection. Standard cross section, 14.4” (366mm) length. Made of metal detectable Nylon 6.6, are light blue in color, and come in packages of 100.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Light Blue
Environment Indoor
Sub Brand Pan-Ty®
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E, STS2, STH2
Material Metal Impregnated Nylon 6.6
Resistance Properties NA
Maximum Bundle Diameter (In.) 4
Maximum Bundle Diameter (mm) 102
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.13
Minimum Bundle Diameter (mm) 3.3
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 222
Minimum Loop Tensile Strength (lb) 50
Minimum Operating Temperature (°C) -40
Minimum Operating Temperature (°F) -40
Overall Length (In.) 14.4
Overall Length (mm) 366
Body Width (In.) 0.19
Body Width (mm) 4.8
Body Thickness (In.) 0.057
Body Thickness (mm) 1.4
Standards Met RoHS Compliant
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
