Dây rút Panduit [PLT4H-TL30/147]

Dây rút Panduit [PLT4H-TL30/147]

20.550 VND
20.550 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT4H-TL30/147

MÔ TẢ SẢN PHẨM

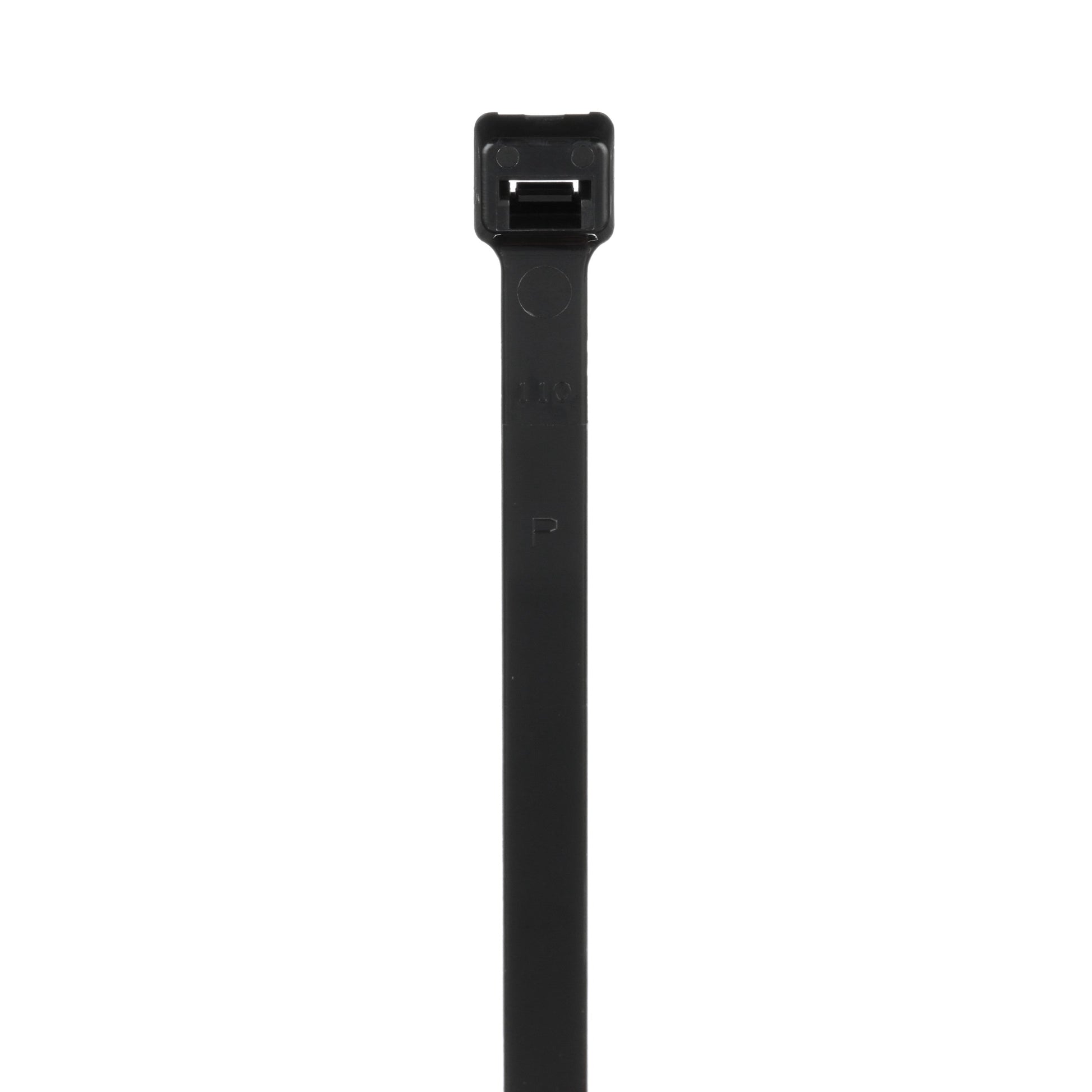

Panduit PLT4H-TL30/147 Flexible Cable Ties are designed for high temperature heavy duty applications such as truck, bus and heavy equipment. With their excellent tensile strength and flexible strap body, they deliver consistent performance and reliability while allowing faster installation with lower effort. Heavy cross section, 14.5” (368mm) length. Made of Heat Stabilized Nylon 6.6 for high temperature applications, are black in color and come in packages of 250.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor
Sub Brand Pan-Ty®
For Use With GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Material Heat Stabilized Nylon 6.6
Resistance Properties Heat Resistant
Maximum Bundle Diameter (In.) 4.11
Maximum Bundle Diameter (mm) 104.5
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Bundle Diameter (In.) 0.188
Minimum Bundle Diameter (mm) 4.8
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 534
Minimum Loop Tensile Strength (lb) 120
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 14.5
Overall Length (mm) 368
Body Width (In.) 0.3
Body Width (mm) 7.6
Body Thickness (In.) 0.06
Body Thickness (mm) 1.5
Standards Met CSA Certified, UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
