Dây rút Panduit 188mm x 4.83mm Black [PLT2S-M100]

Dây rút Panduit 188mm x 4.83mm Black [PLT2S-M100]

3.540 VND
3.540 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT2S-M100

MÔ TẢ SẢN PHẨM

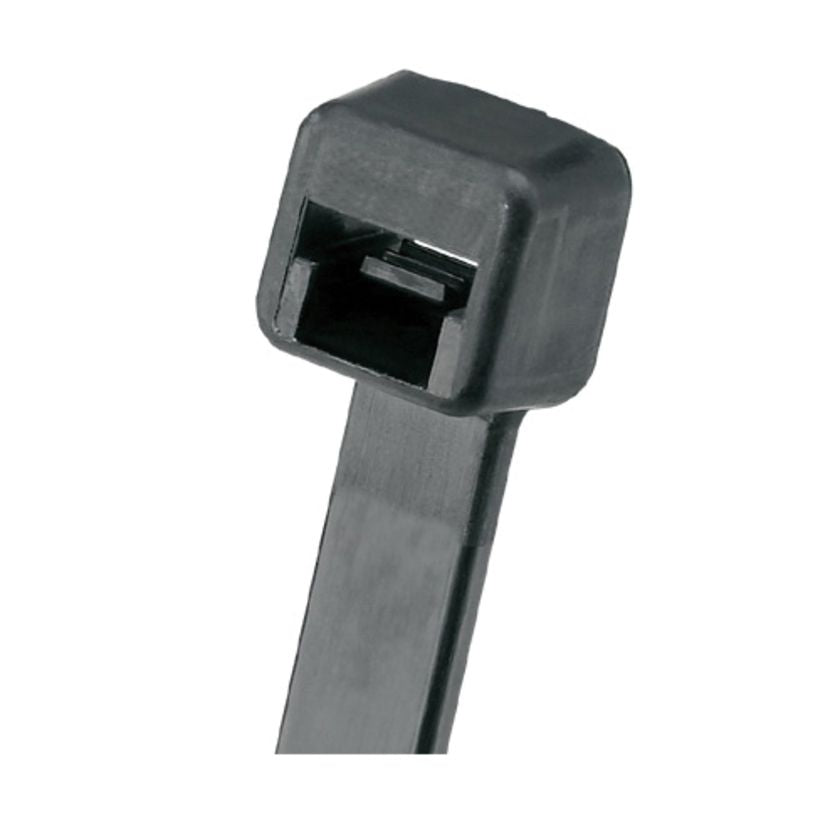

Panduit PLT2S-M100 Locking Cable Ties are designed to satisfy the needs of chemical and weather resistant applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 7.4" (188mm) length. Made of Weather Resistant Polypropylene, are black in color and come in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor/Outdoor
Sub Brand Pan-Ty®
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
Material Weather Resistant Polypropylene
Resistance Properties Chemical and UV Resistant
Maximum Bundle Diameter (In.) 1.88
Maximum Bundle Diameter (mm) 48
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Bundle Diameter (In.) 0.06
Minimum Bundle Diameter (mm) 1.5
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 133
Minimum Loop Tensile Strength (lb) 30
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 7.4
Overall Length (mm) 188
Body Width (In.) 0.19
Body Width (mm) 4.8
Body Thickness (In.) 0.052
Body Thickness (mm) 1.3
Standards Met RoHS Compliant
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
