PANDUIT

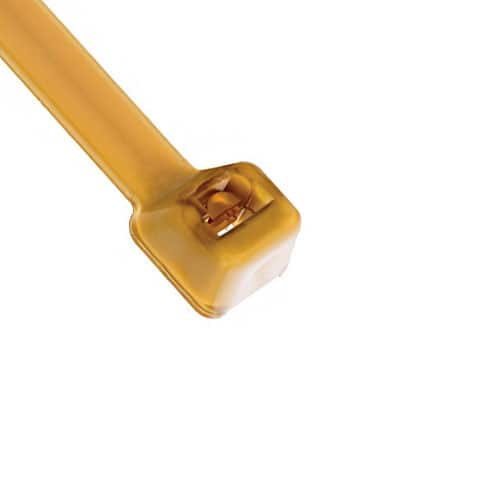

Dây rút Panduit 188mm x 4.83mm Brown, Translucent [PLT2S-C71]

Name: Dây rút Panduit 188mm x 4.83mm Brown, Translucent [PLT2S-C71]
Brand: PANDUIT
Price: 62990 VND
Availability: InStock

62.990 VND

Sale Sold out

Quantity

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT2S-C71

MÔ TẢ SẢN PHẨM

Panduit PLT2S-C71 Locking Cable Ties are designed for harsh environments where a cable tie material is required to hold up to chemical, high radiation, and/or high operating temperature environments. Non-conductive material that is excellent for high temperature applications. Standard cross section, 7.4” (188 mm) length. Made of PEEK, are translucent brown in color and come in packages of 100.

_THÔNG SỐ KỸ THUẬT:

Product Type	Cable Ties
Color	Translucent Brown
Environment	Indoor
Sub Brand	Pan-Ty®
For Use With	GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
Material	PEEK
Resistance Properties	Chemical, Radiation and High Heat Resistant
Maximum Bundle Diameter (In.)	1.88
Maximum Bundle Diameter (mm)	48
Maximum Installation Temperature (°F)	32
Maximum Operating Temperature (°C)	260
Maximum Operating Temperature (°F)	500
Minimum Bundle Diameter (In.)	0.13
Minimum Bundle Diameter (mm)	3.3
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Minimum Loop Tensile Strength (N)	668
Minimum Loop Tensile Strength (lb)	150
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Overall Length (In.)	7.4
Overall Length (mm)	188
Body Width (In.)	0.19
Body Width (mm)	4.8
Body Thickness (In.)	0.055
Body Thickness (mm)	1.4
Standards Met	RoHS Compliant
Military Cross Reference Number	MS3367-1-16
Part Features	One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
