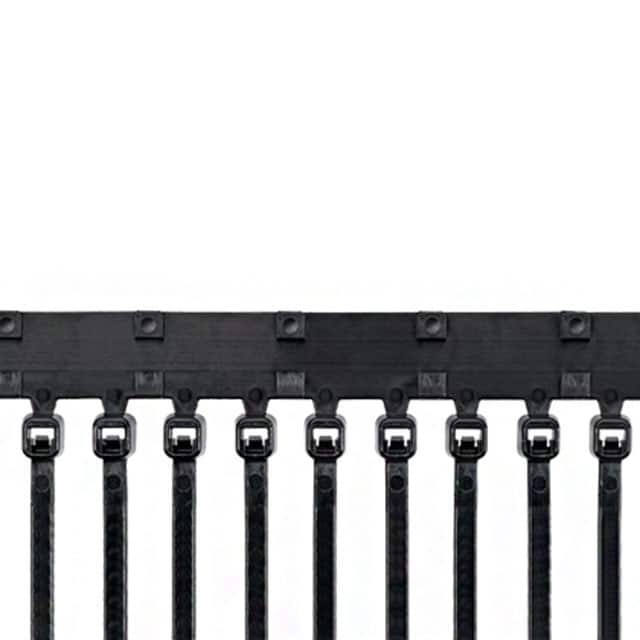

Dây rút Panduit 102mm x 2.5mm Black [PLT1M-XMR30]

Dây rút Panduit 102mm x 2.5mm Black [PLT1M-XMR30]

2.180 VND
2.180 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT1M-XMR30

MÔ TẢ SẢN PHẨM

Panduit PLT1M-XMR30 continuously molded cable ties provide constant feeding for high productivity and reduced downtime due to fewer reel changes. Miniature cross section, 4.0” (102mm) cable ties for use with PAT1M4.0 system. Made of Heat Stabilized Nylon 6.6, are black in color and come 5,000 ties per reel.

_THÔNG SỐ KỸ THUẬT:

Application Reel-fed cable ties for automated tooling
Product Type Reel-Fed Cable Tie
Color Black
Sub Brand Pan-Ty®
Environment Indoor
For Use With PAT1M4.0 System
Material Heat Stabilized Nylon 6.6
Maximum Bundle Diameter (In.) 0.82
Maximum Bundle Diameter (mm) 20.8
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Bundle Diameter (In.) 0.02
Minimum Bundle Diameter (mm) 0.5
Minimum Loop Tensile Strength (N) 80
Minimum Loop Tensile Strength (lb) 18
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 4
Overall Length (mm) 102
Body Width (In.) 0.1
Body Width (mm) 2.5
Body Thickness (In.) 0.036
Body Thickness (mm) 0.9
Resistance Properties Heat Resistant
Standards Met UL Listed, UL Recognized, CSA Certified, CE Compliant, RoHS Compliant
Number of Ties per Reel 5000
