PANDUIT

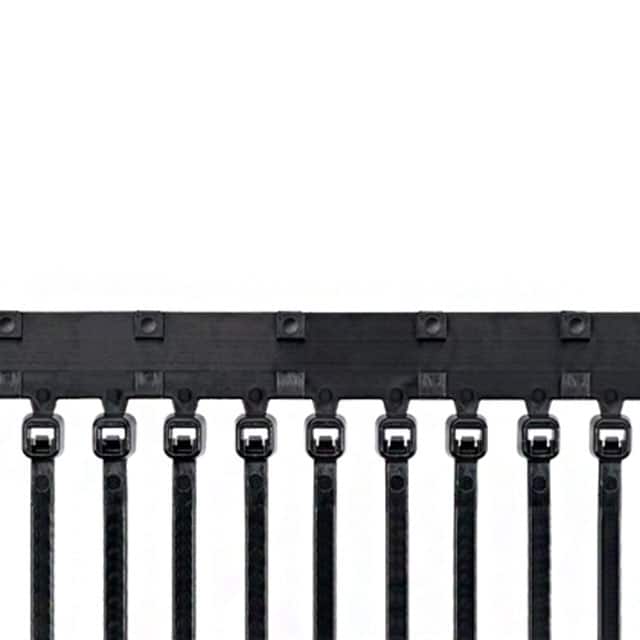

Dây rút Panduit 102mm x 2.5mm Black [PLT1M-XMR0]

Dây rút Panduit 102mm x 2.5mm Black [PLT1M-XMR0]

2.180 VND
2.180 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT1M-XMR0

MÔ TẢ SẢN PHẨM

Panduit PLT1M-XMR0 continuously molded cable ties provide constant feeding for high productivity and reduced downtime due to fewer reel changes. Miniature cross section, 4.0” (102mm) cable ties for use with PAT1M4.0 and PDM4.0 system. Made of weather resistant Nylon 6.6, are black in color and come 5,000 ties per reel.

_THÔNG SỐ KỸ THUẬT:

Application Reel-fed cable ties for automated tooling
Product Type Reel-Fed Cable Tie
Color Black
Sub Brand Pan-Ty®
Environment Indoor/Outdoor
For Use With PAT1M4.0 System
Material Weather Resistant Nylon 6.6
Maximum Bundle Diameter (In.) 0.82
Maximum Bundle Diameter (mm) 20.8
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.02
Minimum Bundle Diameter (mm) 0.5
Minimum Loop Tensile Strength (N) 80
Minimum Loop Tensile Strength (lb) 18
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 4
Overall Length (mm) 102
Body Width (In.) 0.1
Body Width (mm) 2.5
Body Thickness (In.) 0.036
Body Thickness (mm) 0.9
Resistance Properties UV Resistant
Standards Met UL Listed, UL Recognized, CSA Certified, CE Compliant, RoHS Compliant
Number of Ties per Reel 5000
