Dây rút Panduit 102mm x 2.5mm Natural [PLT1M-XMR]

Name: Dây rút Panduit 102mm x 2.5mm Natural [PLT1M-XMR]
Brand: PANDUIT
Price: 1910 VND
Availability: InStock

1.910 VND

Sale Sold out

Quantity

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT1M-XMR

MÔ TẢ SẢN PHẨM

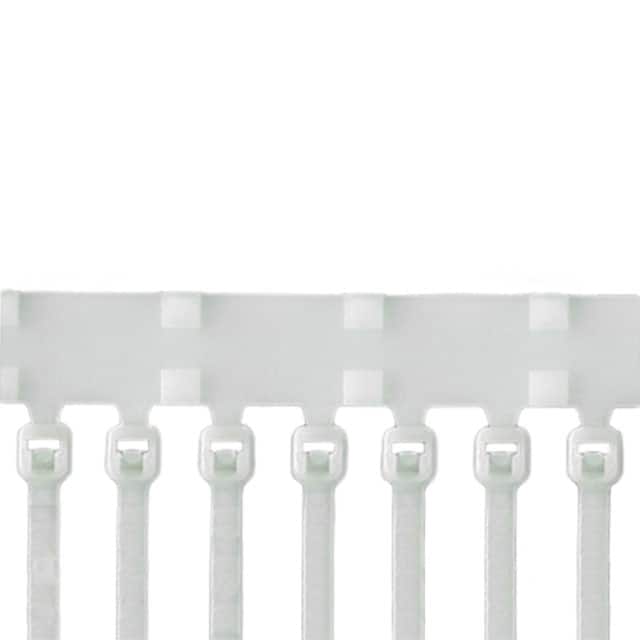

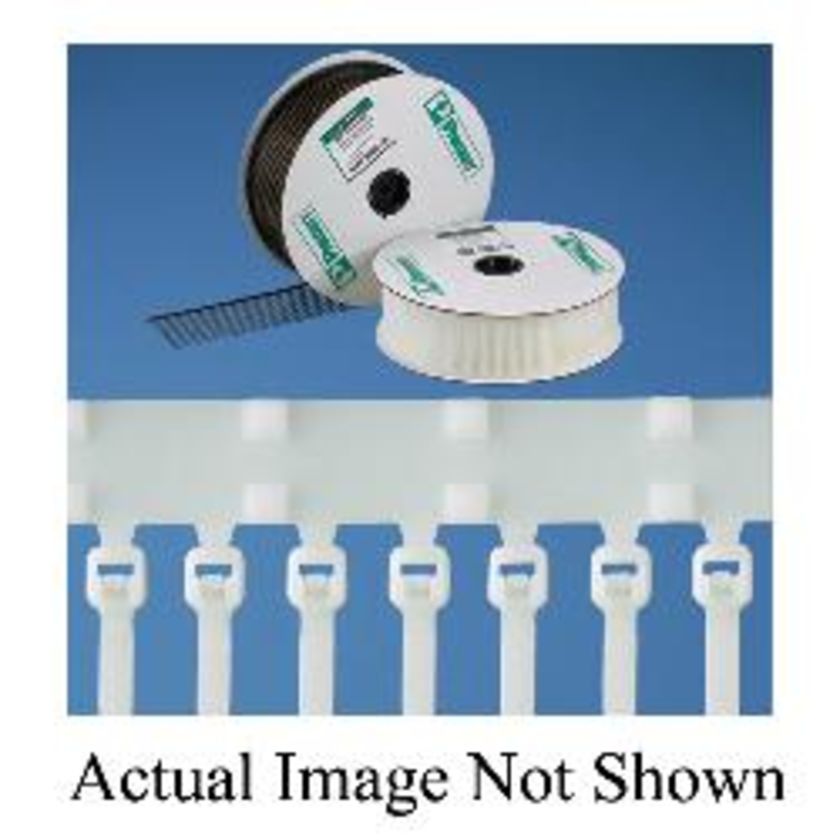

Panduit PLT1M-XMR continuously molded cable ties provide constant feeding for high productivity and reduced downtime due to fewer reel changes. Miniature cross section, 4.0” (102mm) cable ties for use with PAT1M4.0 and PDM4.0 system. Made of Nylon 6.6, are natural in color and come 5,000 ties per reel.

_THÔNG SỐ KỸ THUẬT:

Application	Reel-fed cable ties for automated tooling
Product Type	Reel-Fed Cable Tie
Color	Natural
Sub Brand	Pan-Ty®
Environment	Indoor
For Use With	PAT1M4.0 System
Material	Nylon 6.6
Maximum Bundle Diameter (In.)	0.82
Maximum Bundle Diameter (mm)	20.8
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Bundle Diameter (In.)	0.02
Minimum Bundle Diameter (mm)	0.5
Minimum Loop Tensile Strength (N)	80
Minimum Loop Tensile Strength (lb)	18
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Overall Length (In.)	4
Overall Length (mm)	102
Body Width (In.)	0.1
Body Width (mm)	2.5
Body Thickness (In.)	0.036
Body Thickness (mm)	0.9
Resistance Properties	NA
Standards Met	UL Listed, UL Recognized, CSA Certified, CE Compliant, RoHS Compliant
Military Cross Reference Number	MS3367-4-9
Number of Ties per Reel	5000
