Dây rút Panduit 102mm x 2.5mm Blue, Aqua [PLT1M-M76]

Name: Dây rút Panduit 102mm x 2.5mm Blue, Aqua [PLT1M-M76]
Brand: PANDUIT
Price: 14050 VND
Availability: InStock

14.050 VND

Sale Sold out

Quantity

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT1M-M76

MÔ TẢ SẢN PHẨM

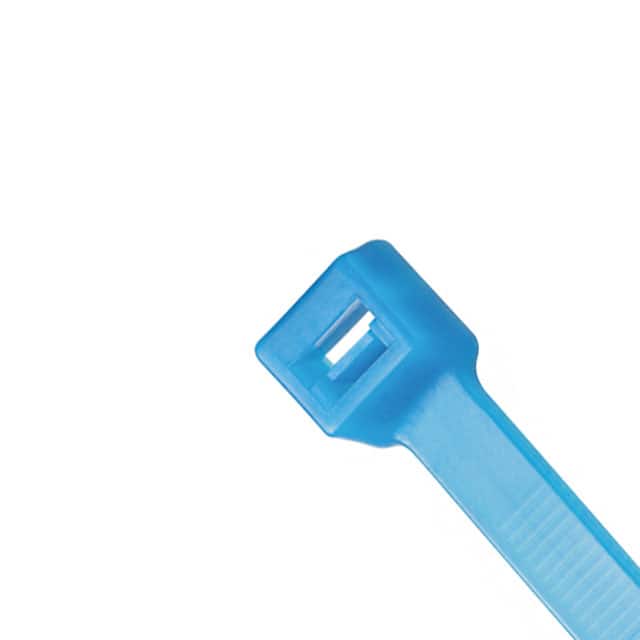

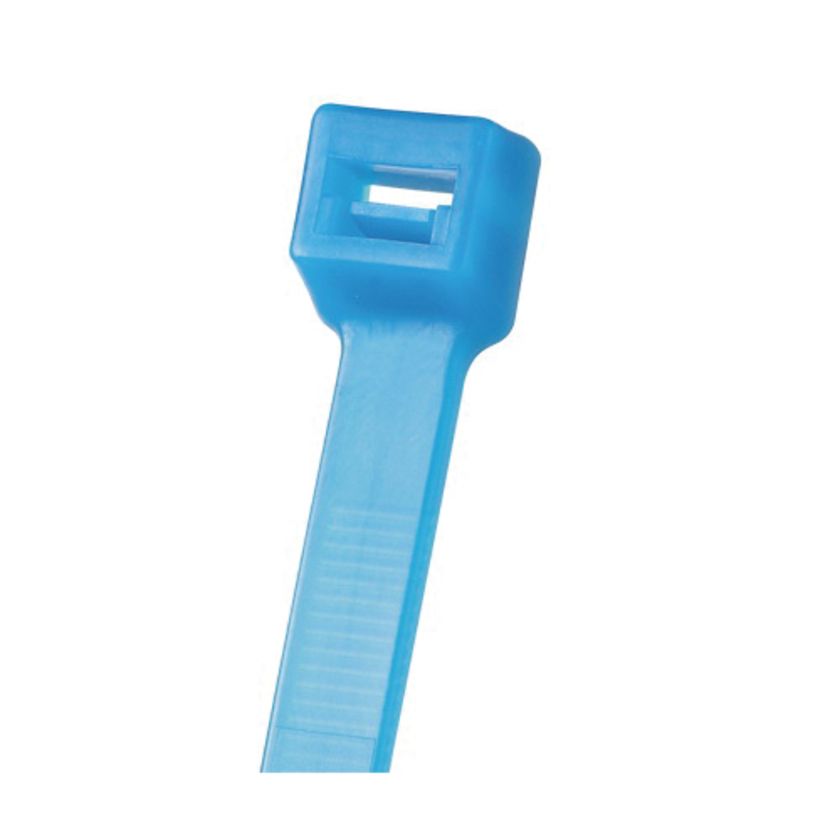

Panduit PLT1M-M76 Tefzel locking cable ties are designed for applications requiring resistance to environmental stresses such as chemical attack, gamma radiation, ultraviolet radiation and extreme temperatures. Ideal for use in nuclear power facilities and chemical processing plants. Low smoke density and excellent flammability rating of UL 94V-0. Miniature cross section, 4.0” (102mm) length. For indoor or outdoor use, made of Tefzel, are a distinctive aqua blue in color and come in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Product Type	Cable Ties
Color	Aqua
Environment	Indoor/Outdoor
Sub Brand	Pan-Ty®
For Use With	GTS-E, GS2B-E, PTS, PPTS, STS2
Material	Tefzel
Resistance Properties	Chemical, Radiation, UV and High Heat Resistant
Maximum Bundle Diameter (In.)	0.87
Maximum Bundle Diameter (mm)	22
Maximum Installation Temperature (°F)	32
Maximum Operating Temperature (°C)	170
Maximum Operating Temperature (°F)	338
Minimum Bundle Diameter (In.)	0.13
Minimum Bundle Diameter (mm)	3.3
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Minimum Loop Tensile Strength (N)	80
Minimum Loop Tensile Strength (lb)	18
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Overall Length (In.)	4
Overall Length (mm)	102
Body Width (In.)	0.098
Body Width (mm)	2.5
Body Thickness (In.)	0.043
Body Thickness (mm)	1.1
Standards Met	UL Recognized (File #E56854, UL 62275 Compliant (Type 1, 11), RoHS Compliant
Military Cross Reference Number	MS3367-4-15
Part Features	One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
