PANDUIT

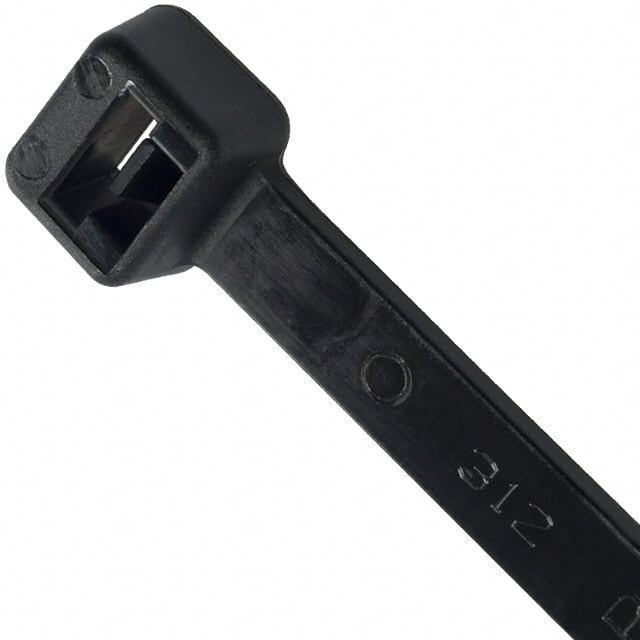

Dây rút Panduit 8.89mm Black [PLT13H-C0]

Dây rút Panduit 8.89mm Black [PLT13H-C0]

35.970 VND
35.970 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT13H-C0

MÔ TẢ SẢN PHẨM

Panduit PLT13H-C0 Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Heavy cross section, 43.3” (1100mm) length. For Indoor/Outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor/Outdoor
Sub Brand Pan-Ty®
For Use With GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Material Weather Resistant Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 13
Maximum Bundle Diameter (mm) 330
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 5.5
Minimum Bundle Diameter (mm) 140
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 778
Minimum Loop Tensile Strength (lb) 175
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 43.3
Overall Length (mm) 1100
Body Width (In.) 0.35
Body Width (mm) 8.9
Body Thickness (In.) 0.078
Body Thickness (mm) 2
Standards Met UL 62275 Compliant (Type 1, 11), UL Recognized (File #E56854), CSA Certified, RoHS Complaint
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
