PANDUIT

Dây rút Panduit 142mm x 2.5mm Natural [PLT1.5M-M]

Dây rút Panduit 142mm x 2.5mm Natural [PLT1.5M-M]

1.400 VND
1.400 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT1.5M-M

MÔ TẢ SẢN PHẨM

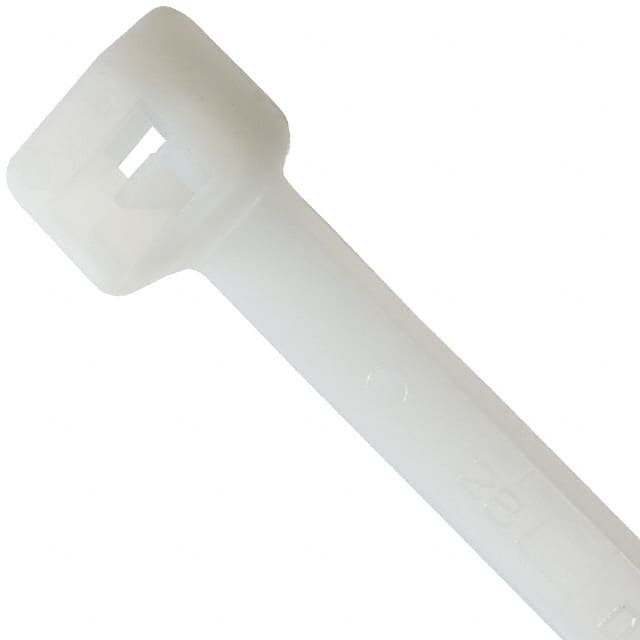

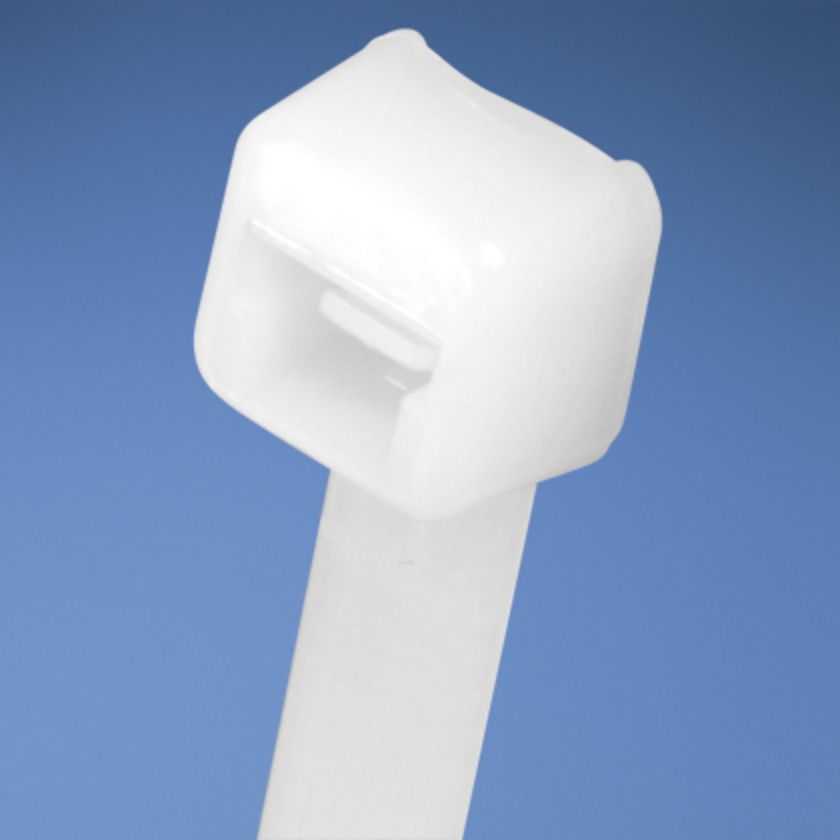

Panduit PLT1.5M-M Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Miniature cross section, 5.6” (142mm) length. For Indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Natural
Environment Indoor
Sub Brand Pan-Ty®
For Use With GTS-E, GS2B-E, PTS, PPTS, STS2
Material Nylon 6.6
Resistance Properties NA
Maximum Bundle Diameter (In.) 1.25
Maximum Bundle Diameter (mm) 32
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.06
Minimum Bundle Diameter (mm) 1.5
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 80
Minimum Loop Tensile Strength (lb) 18
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 5.6
Overall Length (mm) 142
Body Width (In.) 0.098
Body Width (mm) 2.5
Body Thickness (In.) 0.043
Body Thickness (mm) 1.1
Standards Met UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
