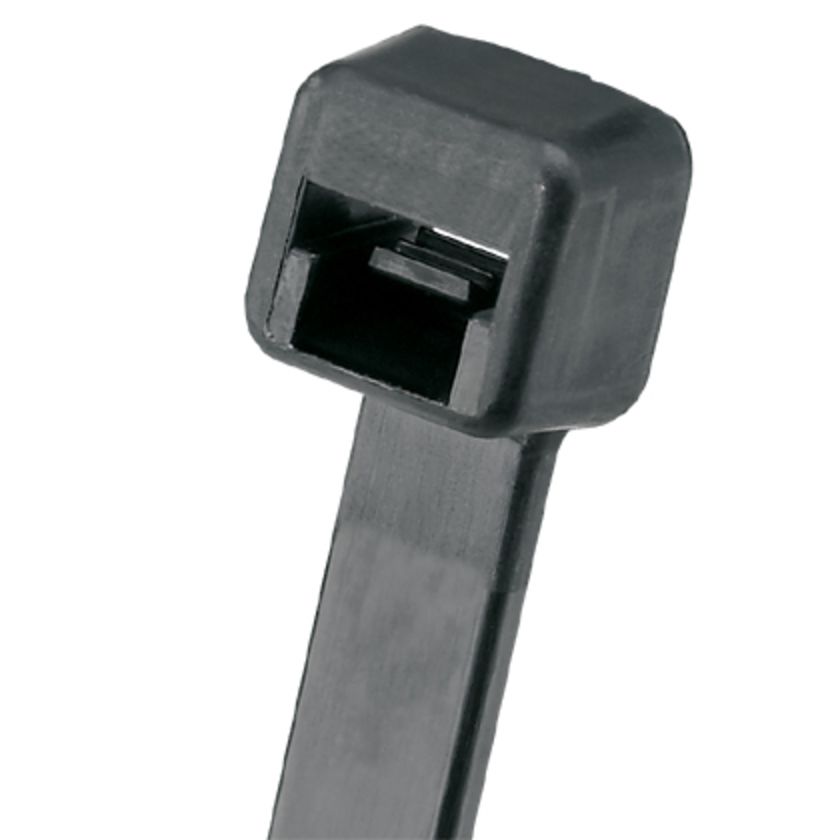

Dây rút Panduit 142mm x 3.61mm Black [PLT1.5I-M0]

Dây rút Panduit 142mm x 3.61mm Black [PLT1.5I-M0]

1.860 VND
1.860 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT1.5I-M0

MÔ TẢ SẢN PHẨM

Panduit PLT1.5I-M0 Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Intermediate cross section, 5.6” (142mm) length. For Indoor/Outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor/Outdoor
Sub Brand Pan-Ty®
For Use With GTS-E, GS2B-E, PTS, PPTS, STS2
Material Weather Resistant Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 1.38
Maximum Bundle Diameter (mm) 35
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.06
Minimum Bundle Diameter (mm) 1.5
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 178
Minimum Loop Tensile Strength (lb) 40
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 5.6
Overall Length (mm) 142
Body Width (In.) 0.142
Body Width (mm) 3.6
Body Thickness (In.) 0.045
Body Thickness (mm) 1.1
Standards Met UL Recognized (File #E56854), UL 62275 Compliant (Type 2, 21), RoHS Complaint
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
