PANDUIT

Dây rút Panduit 71mm x 1.8mm Natural [PLT.6SM-M]

Dây rút Panduit 71mm x 1.8mm Natural [PLT.6SM-M]

550 VND
550 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLT.6SM-M

MÔ TẢ SẢN PHẨM

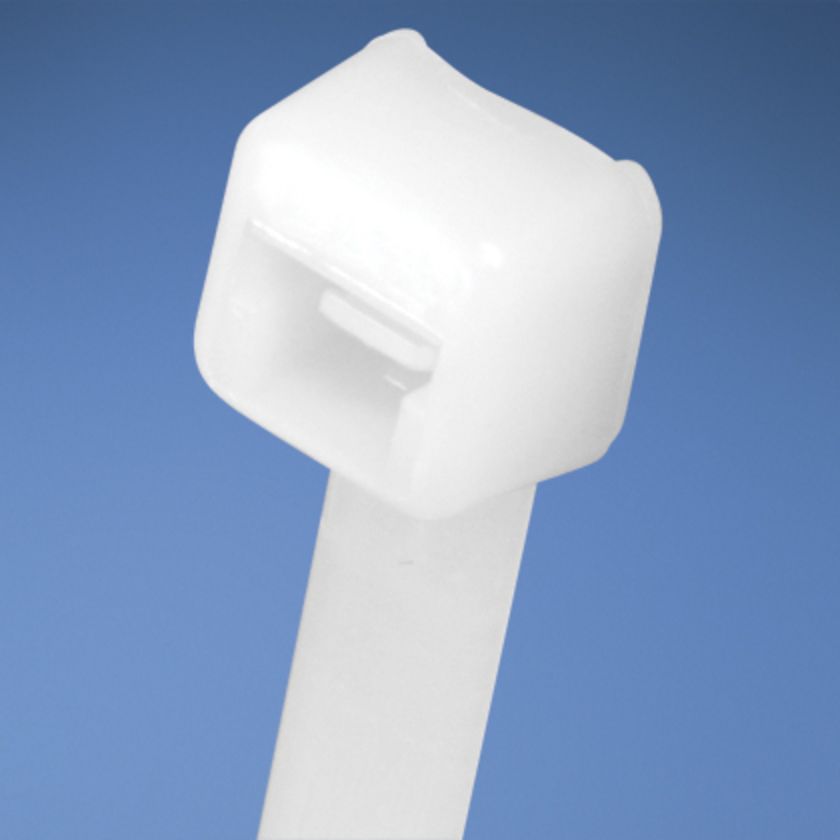

Panduit PLT.6SM-M Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Sub Miniature cross section, 2.8” (71mm) length. For Indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Natural
Environment Indoor
Sub Brand Pan-Ty®
For Use With GTS-E, PTS
Material Nylon 6.6
Resistance Properties NA
Maximum Bundle Diameter (In.) 0.6
Maximum Bundle Diameter (mm) 15
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.01
Minimum Bundle Diameter (mm) 0.3
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 36
Minimum Loop Tensile Strength (lb) 8
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 2.8
Overall Length (mm) 71
Body Width (In.) 0.07
Body Width (mm) 1.8
Body Thickness (In.) 0.03
Body Thickness (mm) 0.8
Standards Met UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Complaint
Part Features One-piece locking wedge for consistent performance and reliability. Low thread force and high loop tensile strength.
