PANDUIT

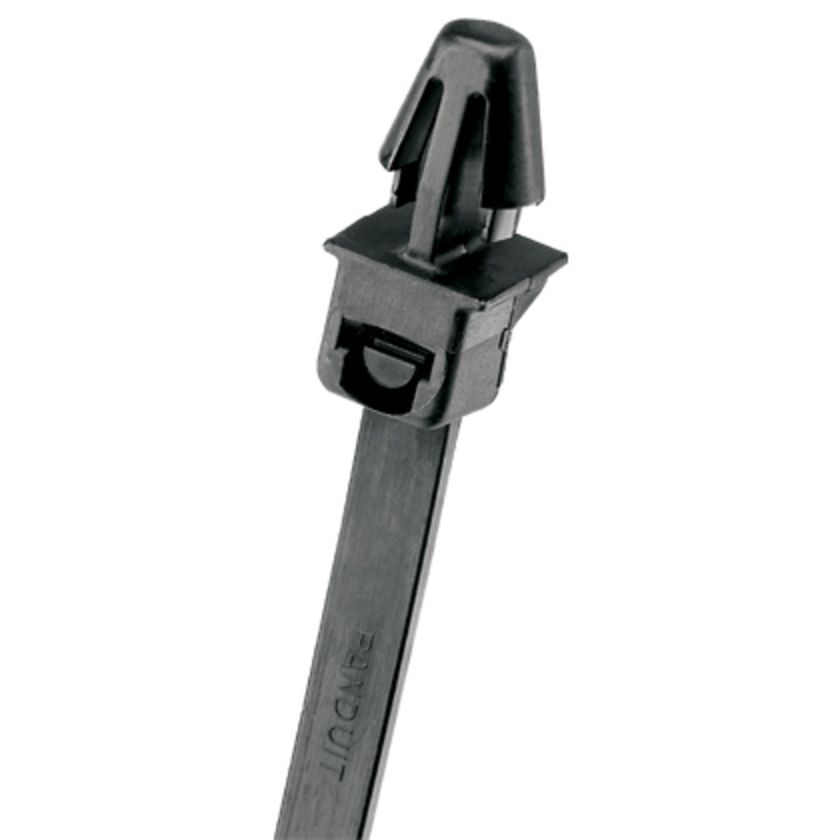

Dây rút Panduit 201mm x 4.83mm Black [PLP2S-M30]

Dây rút Panduit 201mm x 4.83mm Black [PLP2S-M30]

4.280 VND
4.280 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit PLP2S-M30

MÔ TẢ SẢN PHẨM

Pan-Ty® Locking Push Mount Ties use an easy-to-use all-in-one wingless design to attach bundles to surfaces in confined spaces. Plus, with heat stabilized Nylon 6.6 material, it's ideal for temperatures up to 239 degrees. Standard cross section, 7.9in, Tensile Strength: 222, Black, 1000pc.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Color Black
Environment Indoor
Sub Brand Pan-Steel®
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
Material Heat Stabilized Nylon 6.6
Resistance Properties Heat Resistant
Maximum Bundle Diameter (In.) 1.75
Maximum Bundle Diameter (mm) 44.4
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Bundle Diameter (In.) 0.06
Minimum Bundle Diameter (mm) 1.5
Minimum Loop Tensile Strength (N) 222
Minimum Loop Tensile Strength (lb) 50
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 7.88
Overall Length (mm) 200
Body Width (In.) 0.19
Body Width (mm) 4.8
Body Thickness (In.) 0.05
Body Thickness (mm) 1.3
Standards Met UL Recognized (File #E56854), UL 62275 Compliant (Type 1, 11), RoHS Complaint
