PANDUIT

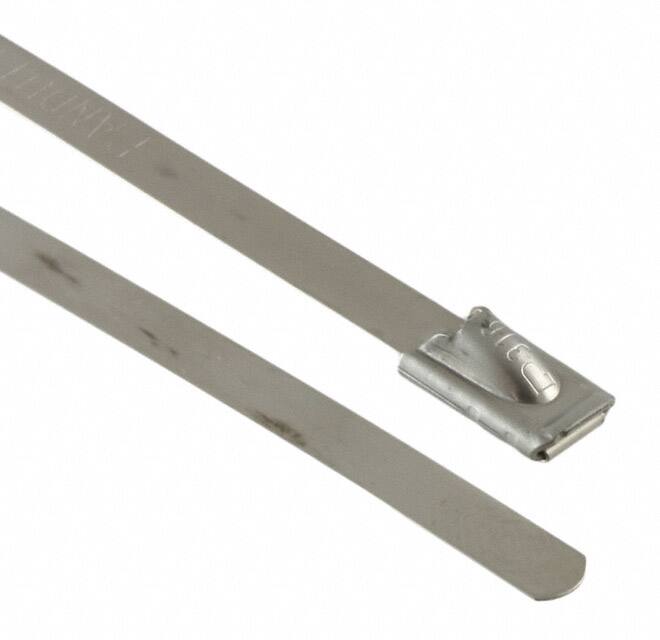

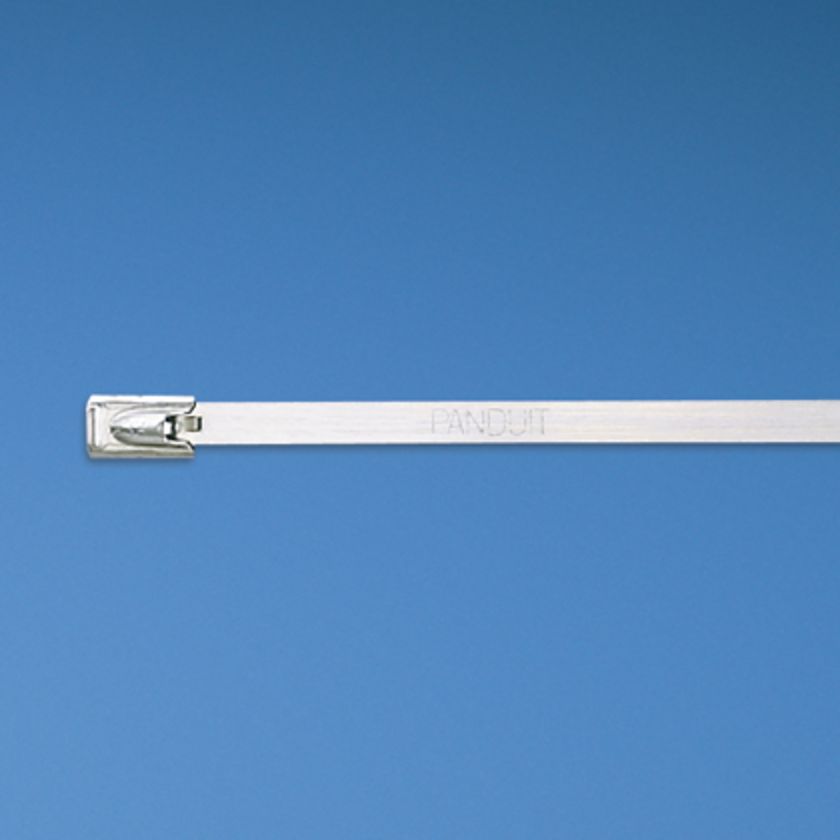

Dây rút Panduit [MLT4S-CP316]

Dây rút Panduit [MLT4S-CP316]

46.570 VND
46.570 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit MLT4S-CP316

MÔ TẢ SẢN PHẨM

The MLT4S-CP316 self locking cable tie speeds up installation with a unique self-locking head design that locks into place at any part of the tie body. The smooth surfaces and rounded edges assure cable protection and worker safety while providing a strong, durable method of cabling bundle. The MLT4S-CP316 cable tie can be used in a wide range of indoor, outdoor, and underground applications. Color Stainless Steel.

_THÔNG SỐ KỸ THUẬT:

Application Harsh Environment
Product Type Stainless Steel Cable Ties
Color Metallic
For Use With GS4MT-E, HTMT, PPTMT, ST2MT
Material Stainless Steel Type 316
Maximum Bundle Diameter (In.) 4
Minimum Bundle Diameter (In.) 0.5
Sub Brand Pan-Steel®
Maximum Bundle Diameter (mm) 102
Minimum Bundle Diameter (mm) 12.7
Maximum Operating Temperature (°C) 538
Minimum Operating Temperature (°C) -60
Maximum Operating Temperature (°F) 1000
Minimum Operating Temperature (°F) -76
Overall Length (In.) 14.3
Overall Length (mm) 362
Body Width (In.) 0.18
Body Width (mm) 4.6
Body Thickness (In.) 0.01
Body Thickness (mm) 0.25
Minimum Loop Tensile Strength (N) 890
Minimum Loop Tensile Strength (lb) 200
