Dây rút Panduit 173mm x 8.89mm Black [IT940-C0]

Dây rút Panduit 173mm x 8.89mm Black [IT940-C0]

10.770 VND
10.770 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit IT940-C0

MÔ TẢ SẢN PHẨM

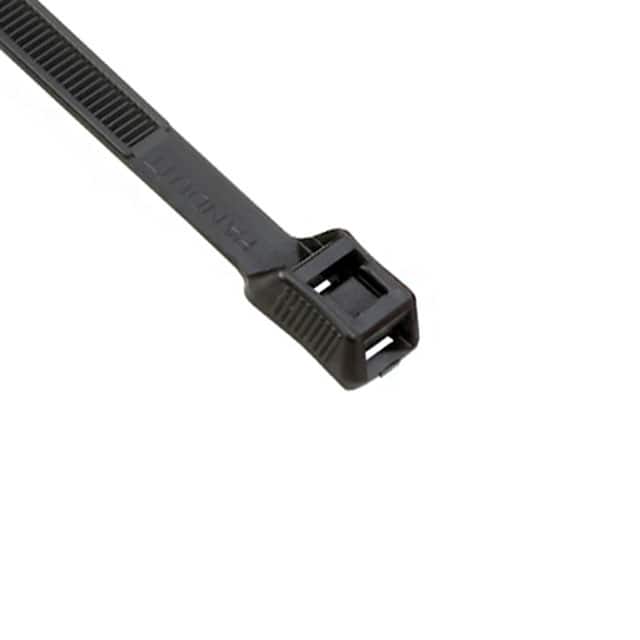

Panduit IT940-C0 Belt-Ty™ In-Line Locking Ties are easy to use because of their low-profile snag-free heads and a belt-like parallel entry lock. The outside teeth on the tie protect cable jackets and wire insulation. With greater resistance to harsh UV light, these ties can be used in both indoor and outdoor environments. Light-Heavy cross section and 6.8” (173mm) length. Made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100. Install by hand or use Panduit GTH-E tool.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor/Outdoor
Sub Brand Belt-Ty™
For Use With GTH-E
Material Weather Resistant Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 1.57
Maximum Bundle Diameter (mm) 40
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.33
Minimum Bundle Diameter (mm) 8
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 552
Minimum Loop Tensile Strength (lb) 124
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 6.8
Overall Length (mm) 173
Body Width (In.) 0.35
Body Width (mm) 8.9
Body Thickness (In.) 0.065
Body Thickness (mm) 1.7
Standards Met RoHS Compliant
Part Features Parallel-entry tie that threads like a belt (180° entry). 50 pct lower head height than conventional 90° ties. Outside teeth protects cable jacket and wire insulation.
