PANDUIT

Dây rút Panduit [IMLT69S-C]

Dây rút Panduit [IMLT69S-C]

0 VND
0 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit IMLT69S-C

MÔ TẢ SẢN PHẨM

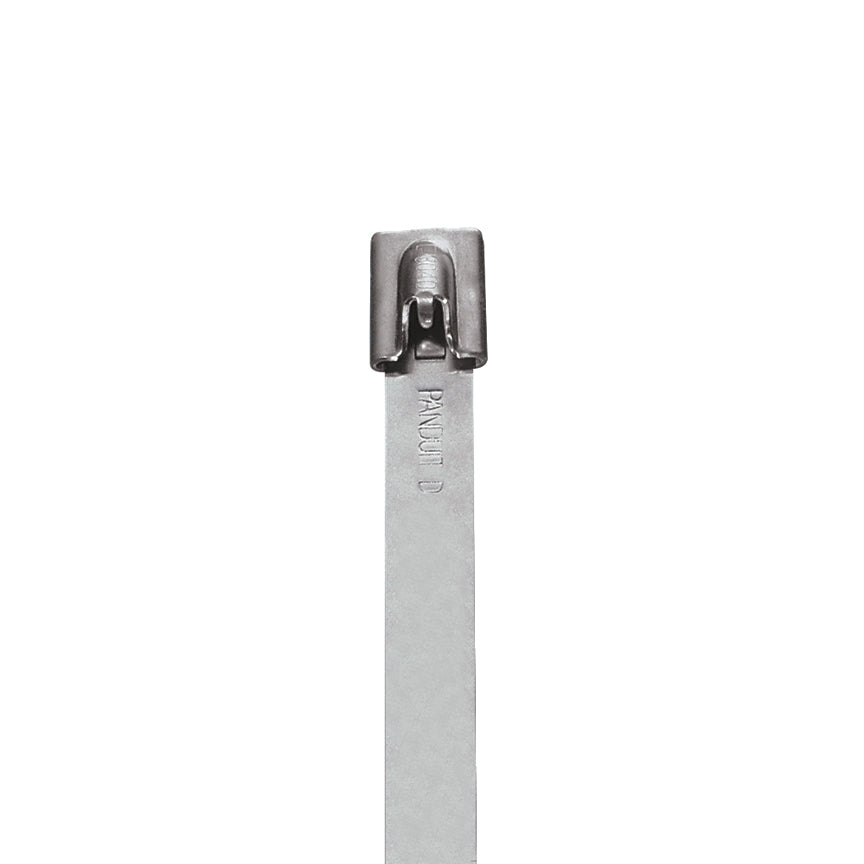

Stronghold IMLT Tie, 304 SS, Standard, 259mm (10.2"), 0.25 mm (0.010") thick

_THÔNG SỐ KỸ THUẬT:

Product Type One Piece Locking
Color Natural
Environment Indoor/Outdoor
For Use With GS4MT, PPTMT, ST2MT, HTMT
Material 304 Stainless Steel
Standards Met UL Listed (File # E56854)
Maximum Bundle Diameter (In.) 2.7
Minimum Bundle Diameter (In.) 0.5
Sub Brand StrongHold™
Maximum Bundle Diameter (mm) 68.6
Minimum Bundle Diameter (mm) 12.7
Maximum Installation Temperature (°C) 538
Minimum Installation Temperature (°C) -60
Maximum Installation Temperature (°F) 1
Minimum Installation Temperature (°F) -76
Maximum Operating Temperature (°C) 538
Minimum Operating Temperature (°C) -60
Maximum Operating Temperature (°F) 1000
Minimum Operating Temperature (°F) -76
Overall Length (In.) 10.5
Overall Length (mm) 266.7
Body Width (In.) 0.26
Body Width (mm) 6.6
Body Thickness (In.) 0.01
Body Thickness (mm) 0.3
Resistance Properties Flame-Resistant
Minimum Loop Tensile Strength (N) 556
Minimum Loop Tensile Strength (lb) 125
