PANDUIT

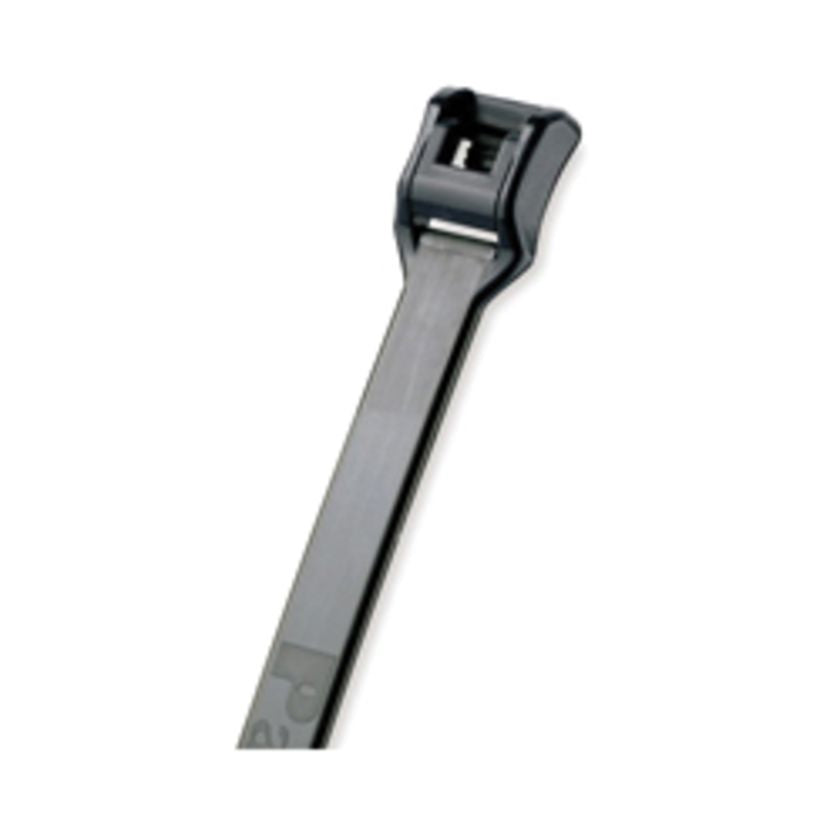

Dây rút Panduit 376mm x 7.62mm Black [ILT4LH-TL0]

Dây rút Panduit 376mm x 7.62mm Black [ILT4LH-TL0]

19.030 VND
19.030 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit ILT4LH-TL0

MÔ TẢ SẢN PHẨM

Panduit Belt-Ty™ in line locking ties are easy to use thanks to low-profile snag-free heads and a belt-like parallel entry lock. Plus, with weather-resistant Nylon 6.6 material, they're ideal for indoor and outdoor environments and harsh UV light. Light-heavy cross section, 14.8in, Tensile strength: 534, black, 250pc.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Color Black
Environment Indoor/Outdoor
Sub Brand Belt-Ty™
For Use With GTH-E, GS4H-E, GS4EH-E, PTH
Material Weather Resistant Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 4
Maximum Bundle Diameter (mm) 101.6
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.2
Minimum Bundle Diameter (mm) 5.1
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 534
Minimum Loop Tensile Strength (lb) 120
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 14.8
Overall Length (mm) 376
Body Width (In.) 0.3
Body Width (mm) 7.6
Body Thickness (In.) 0.075
Body Thickness (mm) 1.9
Standards Met 89/60111 (E3), RoHS Complaint
Part Features Parallel-entry cable tie that threads like a belt (180° entry), Low profile head avoids snags and reduces overall bundle size, 35% lower head height than conventional 90° ties
