PANDUIT

Dây rút Panduit [HV9150-C0]

Dây rút Panduit [HV9150-C0]

34.460 VND
34.460 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit HV9150-C0

MÔ TẢ SẢN PHẨM

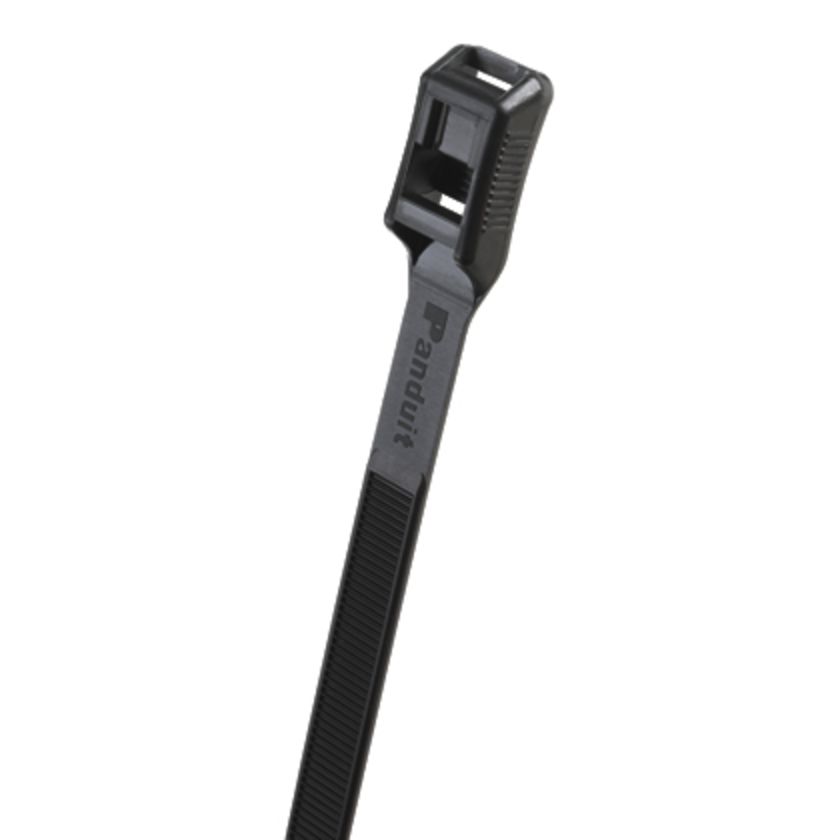

Panduit HV9150-C0 Hyper-VTTM in line cable ties have a perfect balance of strong and flexible. They are flexible enough to conform to irregular bundles, while double-sided teeth and a two-wedge locking design add extra locking strength with low threading force. A releasable head makes these in-line cable ties the ideal solution for temporary securing. Light-heavy cross section, 20.7” (525mm) length, made of Weather Resistant Nylon 6.6, are black in color, and come in packages of 100.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor/Outdoor
Sub Brand Hyper-V™
For Use With GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH, STHV
Material Weather Resistant Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 5.9
Maximum Bundle Diameter (mm) 150
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.39
Minimum Bundle Diameter (mm) 10
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 710
Minimum Loop Tensile Strength (lb) 160
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 20.7
Overall Length (mm) 525
Body Width (In.) 0.35
Body Width (mm) 8.9
Body Thickness (In.) 0.076
Body Thickness (mm) 1.9
Standards Met RoHS Compliant
Part Features Fixed and flexible two-wedge locking design provides a low threading force, Teeth on both sides of cable tie body provide additional locking strength and improved flexibility to conform to irregular bundle shapes such as securing cables to cable tray systems, Releasable head position for temporary bundling of cables prior to final locking; no need to replace ties when adding cables/wires to the bundle
