PANDUIT

Dây rút Panduit [DTREH-LR0]

Dây rút Panduit [DTREH-LR0]

1.258.420 VND
1.258.420 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit DTREH-LR0

MÔ TẢ SẢN PHẨM

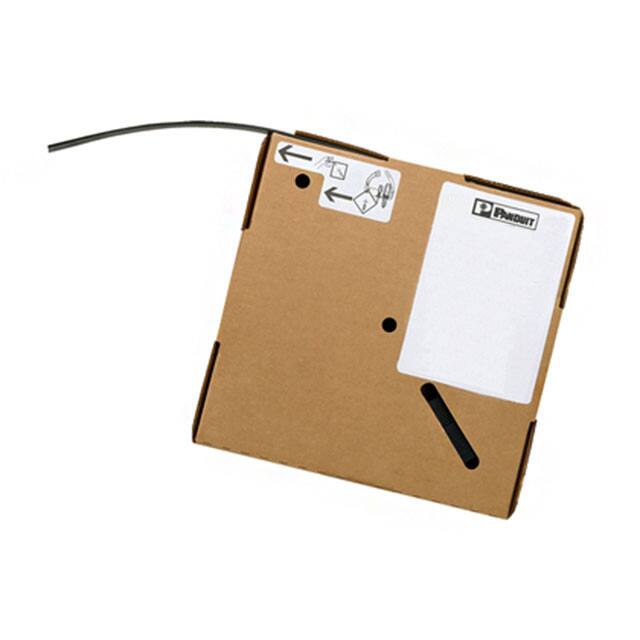

Panduit DTREH-LR0 Dura-Ty® Cable Tie Strapping is weather, chemical, and UV-resistant for harsh outdoor power and communications applications. The durable locking mechanism, complete with double stainless steel locking barbs, provides a consistent, reliable connection and high-impact resistance and strength. Extra-heavy cross section, are made of Weather Resistant Acetal. It is black in color and comes in a package of 1 reel 50' (15,240mm).

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor/Outdoor
Sub Brand Dura-Ty™
For Use With GS4EH-E
Material Acetal
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 0.18
Maximum Bundle Diameter (mm) 4.8
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.02
Minimum Bundle Diameter (mm) 0.51
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 1112
Minimum Loop Tensile Strength (lb) 250
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 600
Overall Length (mm) 15240
Body Width (In.) 0.5
Body Width (mm) 12.7
Body Thickness (In.) 0.059
Body Thickness (mm) 1.5
Standards Met TR-TSY-000789, RoHS Complaint
