PANDUIT

Dây rút Panduit [CBR4LH-TL0]

Dây rút Panduit [CBR4LH-TL0]

19.410 VND
19.410 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit CBR4LH-TL0

MÔ TẢ SẢN PHẨM

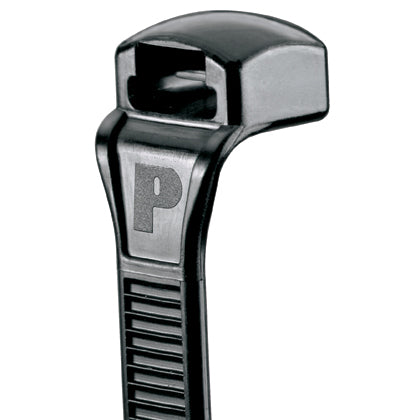

Panduit Contour-Ty® Cable Ties are designed to provide consistent strength in high-vibration environments. Plus, with a low-profile head and parallel entry design, the tip enters easy and stays snug and snag-free. And with Weather Resistant Nylon 6.6 material it's ideal for indoor and outdoor environments and harsh UV light. Light-heavy cross section, 14.6in, Tensile Strength: 534, Black, 250pc.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Color Black
Environment Indoor/Outdoor
Sub Brand Contour-Ty®
For Use With GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Material Weather Resistant Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 4
Maximum Bundle Diameter (mm) 101.6
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.32
Minimum Bundle Diameter (mm) 8
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 534
Minimum Loop Tensile Strength (lb) 120
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 14.6
Overall Length (mm) 371
Body Width (In.) 0.3
Body Width (mm) 7.6
Body Thickness (In.) 0.07
Body Thickness (mm) 1.8
Standards Met SAE-AS23190A, SAE-AS33671, RoHS Complaint
Part Features Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength
