PANDUIT

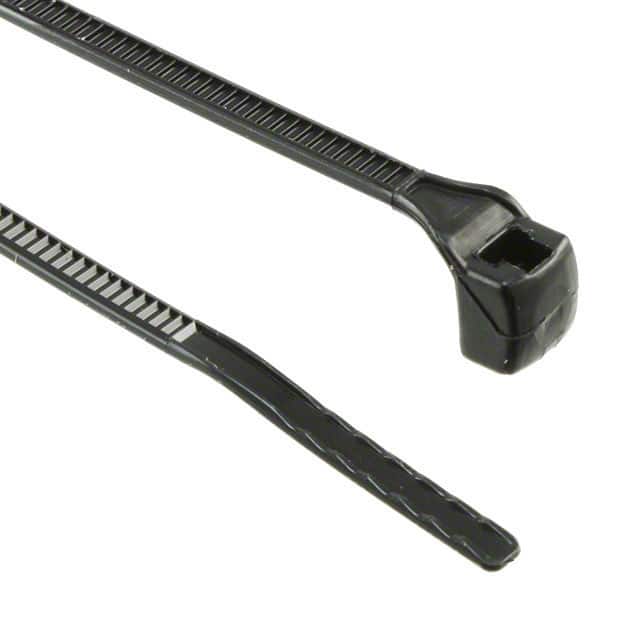

Dây rút Panduit 193mm x 4.83mm Black [CBR2S-M30]

Dây rút Panduit 193mm x 4.83mm Black [CBR2S-M30]

3.700 VND
3.700 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit CBR2S-M30

MÔ TẢ SẢN PHẨM

Panduit CBR2S-M30 Contour-Ty® Cable Ties are designed to provide consistent strength in high-vibration environments. A low-profile head and parallel entry design, the curved tip enters easily and stays snug and snag-free. Standard cross section, 7.6” (193mm) length. Appropriate for Indoor use. Made of Heat Stabilized Nylon 6.6 for high temperature applications, are black in color and come in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor
Sub Brand Contour-Ty®
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
Material Heat Stabilized Nylon 6.6
Resistance Properties Heat Resistant
Maximum Bundle Diameter (In.) 2
Maximum Bundle Diameter (mm) 50.8
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Bundle Diameter (In.) 0.16
Minimum Bundle Diameter (mm) 4.1
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 222
Minimum Loop Tensile Strength (lb) 50
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 7.6
Overall Length (mm) 193
Body Width (In.) 0.19
Body Width (mm) 4.8
Body Thickness (In.) 0.044
Body Thickness (mm) 1.1
Standards Met SAE-AS23190A, SAE-AS33671, RoHS Complaint
Military Cross Reference Number MS3367-36-11
Part Features Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength
