PANDUIT

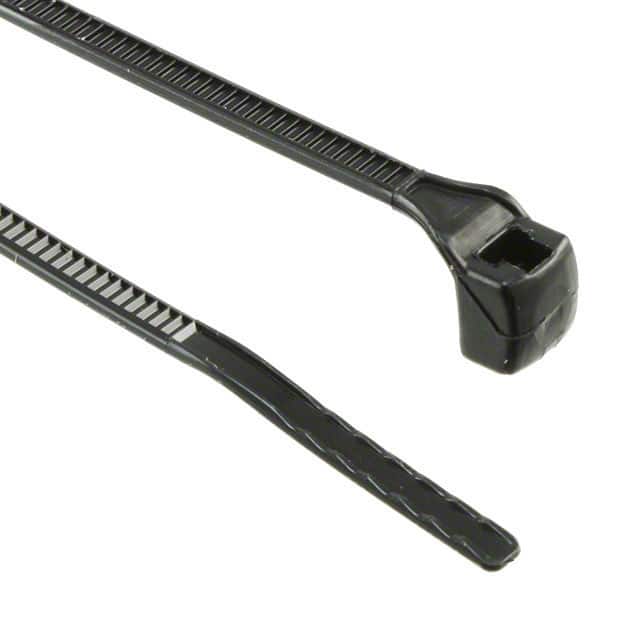

Dây rút Panduit [CBR2S-M0]

Dây rút Panduit [CBR2S-M0]

2.980 VND
2.980 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit CBR2S-M0

MÔ TẢ SẢN PHẨM

Panduit CBR2S-M0 Contour-Ty® Cable Ties are designed to provide consistent strength in high-vibration environments. A low-profile head and parallel entry design, the curved tip enters easily and stays snug and snag-free. Standard cross section, 7.6” (193mm) length. Appropriate for Indoor or Outdoor use. Made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor/Outdoor
Sub Brand Contour-Ty®
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PTH, PPTS, STS2, STH2
Material Weather Resistant Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 2
Maximum Bundle Diameter (mm) 50.8
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.16
Minimum Bundle Diameter (mm) 4.1
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 222
Minimum Loop Tensile Strength (lb) 50
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 7.6
Overall Length (mm) 193
Body Width (In.) 0.19
Body Width (mm) 4.8
Body Thickness (In.) 0.044
Body Thickness (mm) 1.1
Standards Met SAE-AS23190A, SAE-AS33671, RoHS Complaint
Part Features Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength
