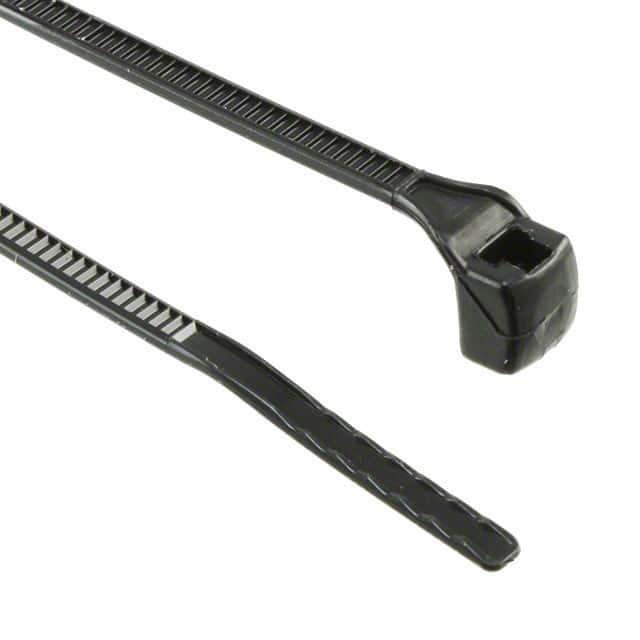

Dây rút Panduit 183mm x 2.5mm Black [CBR2M-M0]

Dây rút Panduit 183mm x 2.5mm Black [CBR2M-M0]

2.220 VND
2.220 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit CBR2M-M0

MÔ TẢ SẢN PHẨM

Panduit Contour-Ty® Cable Ties are designed to provide consistent strength in high-vibration environments. Plus, with a low-profile head and parallel entry design, the tip enters easy and stays snug and snag-free. And with Weather Resistant Nylon 6.6 material it's ideal for indoor and outdoor environments and harsh UV light. Miniature cross section, 7.2in, Tensile Strength: 80, Black, 1000pc.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Color Black
Environment Indoor/Outdoor
Sub Brand Contour-Ty®
For Use With GTS-E, GS2B-E, PTS, PPTS, STS2
Material Weather Resistant Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 2
Maximum Bundle Diameter (mm) 50.8
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.07
Minimum Bundle Diameter (mm) 1.8
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 80
Minimum Loop Tensile Strength (lb) 18
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 7.3
Overall Length (mm) 185.4
Body Width (In.) 0.098
Body Width (mm) 2.5
Body Thickness (In.) 0.042
Body Thickness (mm) 1.1
Standards Met SAE-AS23190A, SAE-AS33671, RoHS Complaint
Part Features Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength
