Dây rút Panduit 104mm x 2.5mm Black [CBR1M-M30]

Dây rút Panduit 104mm x 2.5mm Black [CBR1M-M30]

2.650 VND
2.650 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit CBR1M-M30

MÔ TẢ SẢN PHẨM

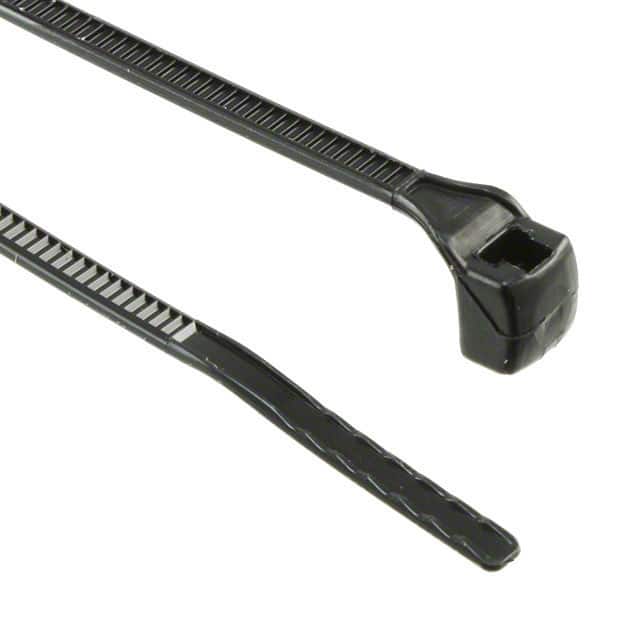

Panduit CBR1M-M30 Contour-Ty® Cable Ties are designed to provide consistent strength in high-vibration environments. A low-profile head and parallel entry design, the curved tip enters easily and stays snug and snag-free. Miniature cross section, 4.1” (104mm) length. Appropriate for Indoor use. Made of Heat Stabilized Nylon 6.6 for high applications, are black in color and come in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor
Sub Brand Contour-Ty®
For Use With GTS-E, GS2B-E, PTS, PPTS, STS2
Material Heat Stabilized Nylon 6.6
Resistance Properties Heat Resistant
Maximum Bundle Diameter (In.) 1
Maximum Bundle Diameter (mm) 25.4
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Bundle Diameter (In.) 0.07
Minimum Bundle Diameter (mm) 1.8
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 80
Minimum Loop Tensile Strength (lb) 18
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 4.1
Overall Length (mm) 104
Body Width (In.) 0.098
Body Width (mm) 2.5
Body Thickness (In.) 0.038
Body Thickness (mm) 1
Standards Met SAE-AS23190A, SAE-AS33671, RoHS Complaint
Military Cross Reference Number MS3367-30-11
Part Features Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength
