PANDUIT

Dây rút Panduit [BT8LH-L]

Dây rút Panduit [BT8LH-L]

22.490 VND
22.490 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit BT8LH-L

MÔ TẢ SẢN PHẨM

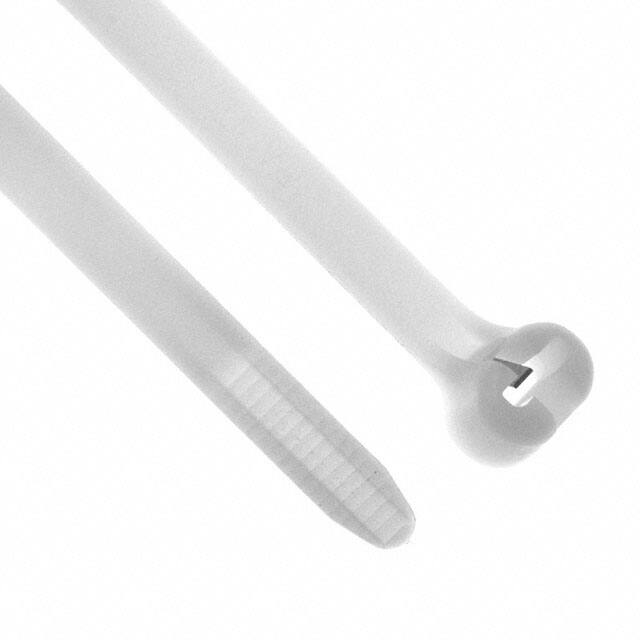

Dome-Top® barb ty cable tie, light-heavy cross section, 27.5 (699mm) length, nylon 6.6, natural, standard package.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Color Natural
Environment Indoor
Sub Brand Dome-Top®
For Use With GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Material Nylon 6.6
Resistance Properties NA
Maximum Bundle Diameter (In.) 8
Maximum Bundle Diameter (mm) 203
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.19
Minimum Bundle Diameter (mm) 4.8
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 534
Minimum Loop Tensile Strength (lb) 120
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 27.5
Overall Length (mm) 699
Body Width (In.) 0.275
Body Width (mm) 7
Body Thickness (In.) 0.065
Body Thickness (mm) 1.7
Standards Met UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Complaint
Military Cross Reference Number MS3367-6-9
