PANDUIT

Dây rút Panduit 384mm x 4.7mm Yellow [BT4S-M4Y]

Dây rút Panduit 384mm x 4.7mm Yellow [BT4S-M4Y]

7.720 VND
7.720 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit BT4S-M4Y

MÔ TẢ SẢN PHẨM

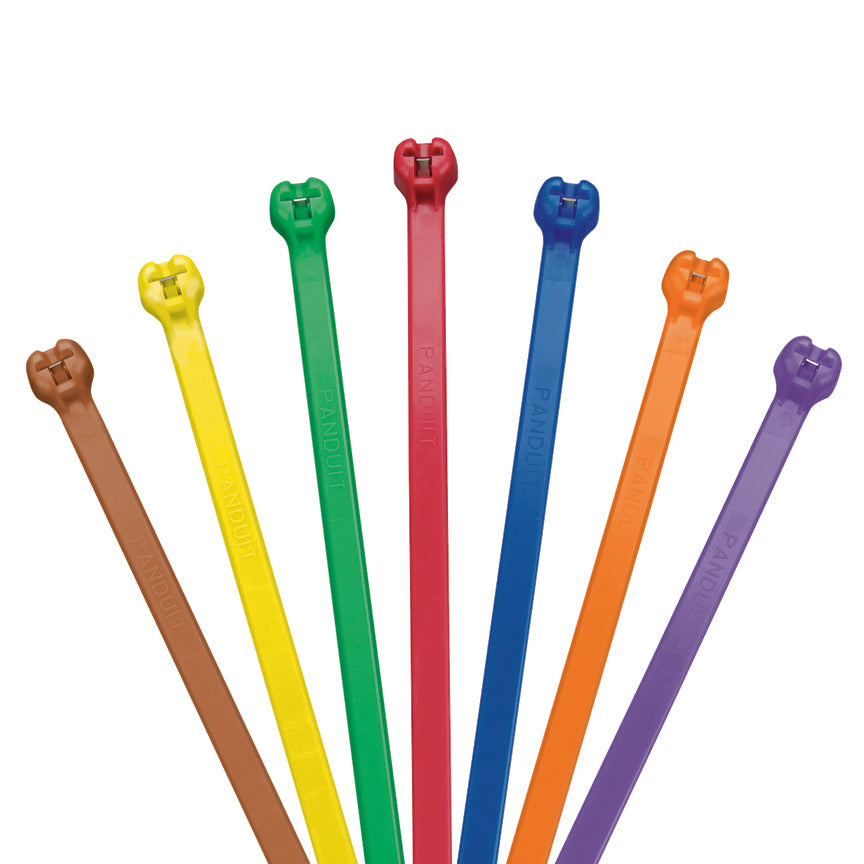

Dome-Top® barb ty cable tie, standard cross section, 15.1 (384mm) length, nylon 6.6, yellow.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Color Yellow
Environment Indoor
Sub Brand Dome-Top®
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E, STS2, STH2
Material Nylon 6.6
Resistance Properties NA
Maximum Bundle Diameter (In.) 4
Maximum Bundle Diameter (mm) 102
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.06
Minimum Bundle Diameter (mm) 1.5
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 222
Minimum Loop Tensile Strength (lb) 50
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 15.1
Overall Length (mm) 384
Body Width (In.) 0.185
Body Width (mm) 4.7
Body Thickness (In.) 0.052
Body Thickness (mm) 1.3
Standards Met UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Complaint
Military Cross Reference Number MS3367-2-4
