PANDUIT

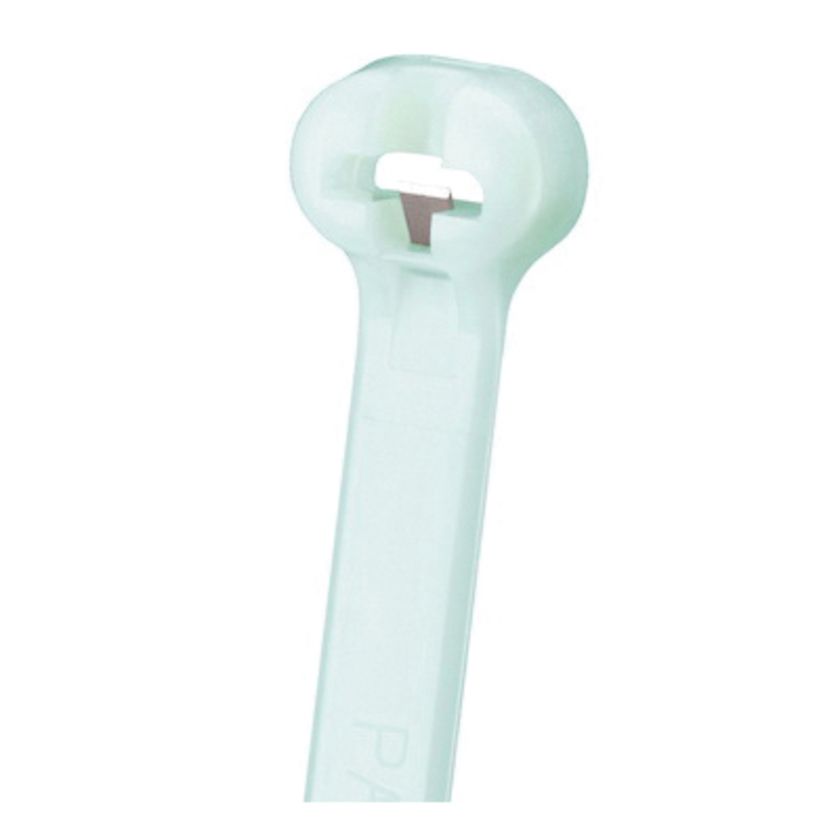

Dây rút Panduit [BT4LH-TL39]

Dây rút Panduit [BT4LH-TL39]

16.230 VND
16.230 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit BT4LH-TL39

MÔ TẢ SẢN PHẨM

Dome-Top® barb ty cable tie, light-heavy cross section, 14.9 (378mm) length, heat stabilized nylon 6.6, natural.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Color Natural
Environment Indoor
Sub Brand Dome-Top®
For Use With GTH-E, GS4H-E, GS4EH-E, STH2, ST3EH, STHV
Material Heat Stabilized Nylon 6.6
Resistance Properties Heat Resistant
Maximum Bundle Diameter (In.) 4
Maximum Bundle Diameter (mm) 102
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 115
Maximum Operating Temperature (°F) 239
Minimum Bundle Diameter (In.) 0.19
Minimum Bundle Diameter (mm) 4.8
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 534
Minimum Loop Tensile Strength (lb) 120
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 14.9
Overall Length (mm) 378
Body Width (In.) 0.275
Body Width (mm) 7
Body Thickness (In.) 0.065
Body Thickness (mm) 1.7
Standards Met UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H; 89/60111 (E3), 11130200, QPL-AS23190, RoHS Complaint
Military Cross Reference Number MS336-3-12
