PANDUIT

Dây rút Panduit [BT4LH-TL0]

Dây rút Panduit [BT4LH-TL0]

11.160 VND
11.160 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit BT4LH-TL0

MÔ TẢ SẢN PHẨM

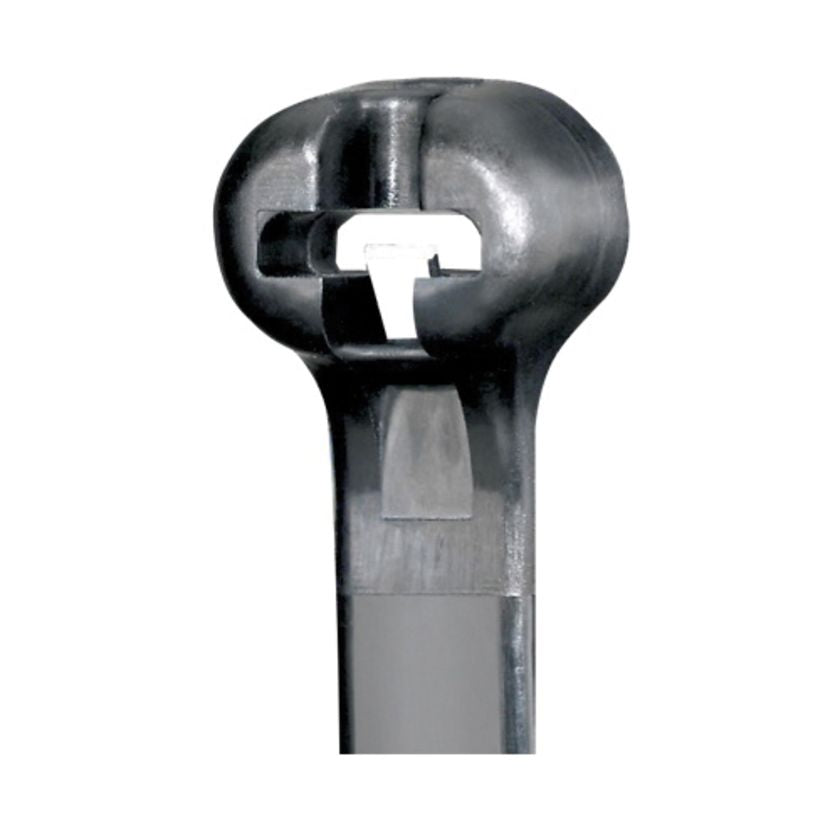

The BT4LH-TL0 Dome-Top® barb ty, features a unique patented design with its round smooth edges. Paired with the stainless steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Light Heavy cross section, 14.9” (378mm) length. Appropriate for Indoor/Outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 250.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor/Outdoor
Sub Brand Dome-Top®
For Use With GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Material Weather Resistant Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 4
Maximum Bundle Diameter (mm) 102
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.188
Minimum Bundle Diameter (mm) 4.8
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 534
Minimum Loop Tensile Strength (lb) 120
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 14.9
Overall Length (mm) 378
Body Width (In.) 0.275
Body Width (mm) 7
Body Thickness (In.) 0.065
Body Thickness (mm) 1.7
Standards Met UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H; 89/60111 (E3), 11130200, QPL-AS23190, RoHS Complaint
