PANDUIT

Dây rút Panduit 300mm x 7mm Natural [BT3LH-L]

Dây rút Panduit 300mm x 7mm Natural [BT3LH-L]

10.810 VND
10.810 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit BT3LH-L

MÔ TẢ SẢN PHẨM

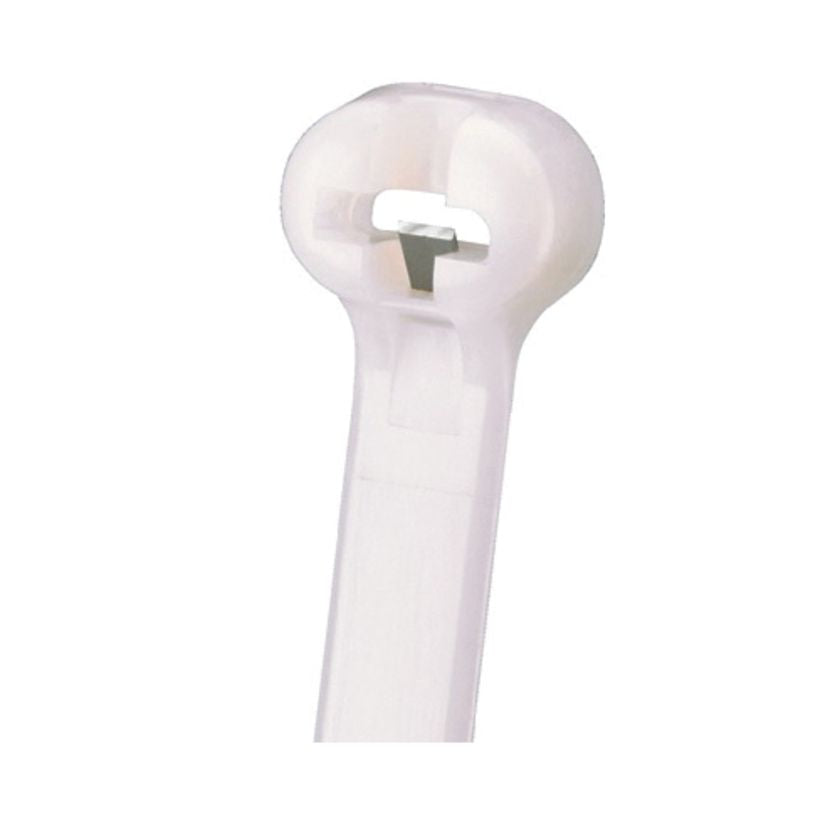

Dome-Top® barb ty cable tie, light-heavy cross section, 11.8 (300mm) length, nylon 6.6, natural, standard package.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Color Natural
Environment Indoor
Sub Brand Dome-Top®
For Use With GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH
Material Nylon 6.6
Resistance Properties NA
Maximum Bundle Diameter (In.) 3
Maximum Bundle Diameter (mm) 76
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.19
Minimum Bundle Diameter (mm) 4.8
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 534
Minimum Loop Tensile Strength (lb) 120
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 11.8
Overall Length (mm) 300
Body Width (In.) 0.275
Body Width (mm) 7
Body Thickness (In.) 0.065
Body Thickness (mm) 1.7
Standards Met UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Complaint
