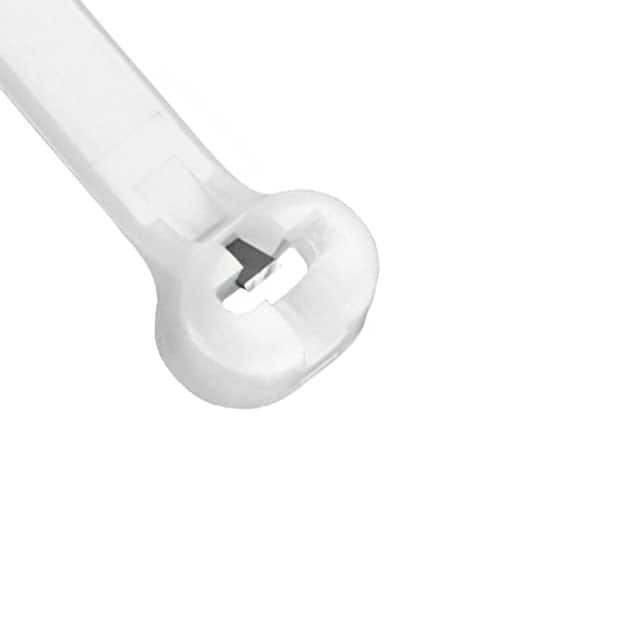

Dây rút Panduit 102mm x 2.41mm White [BT1M-M10]
Dây rút Panduit 102mm x 2.41mm White [BT1M-M10]
Regular price
0 VND
Regular price
Sale price
0 VND
Unit price
/
per
Couldn't load pickup availability
Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit BT1M-M10
MÔ TẢ SẢN PHẨM
Dome-Top® barb ty cable tie, miniature cross section, 4.0 (102mm) length, nylon 6.6, white.
_THÔNG SỐ KỸ THUẬT:
| Product Type | Cable Tie |
| Color | White |
| Environment | Plenum |
| Sub Brand | Dome-Top® |
| For Use With | GTS-E, GS2B-E, STS2, PTS |
| Material | Nylon 6.6 |
| Resistance Properties | NA |
| Maximum Bundle Diameter (In.) | 0.9 |
| Maximum Bundle Diameter (mm) | 22.9 |
| Maximum Installation Temperature (°C) | 0 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Overall Length (In.) | 4 |
| Overall Length (mm) | 102 |
| Body Width (In.) | 0.095 |
| Body Width (mm) | 2.4 |
| Body Thickness (In.) | 0.036 |
| Body Thickness (mm) | 0.9 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Complaint |
