PANDUIT

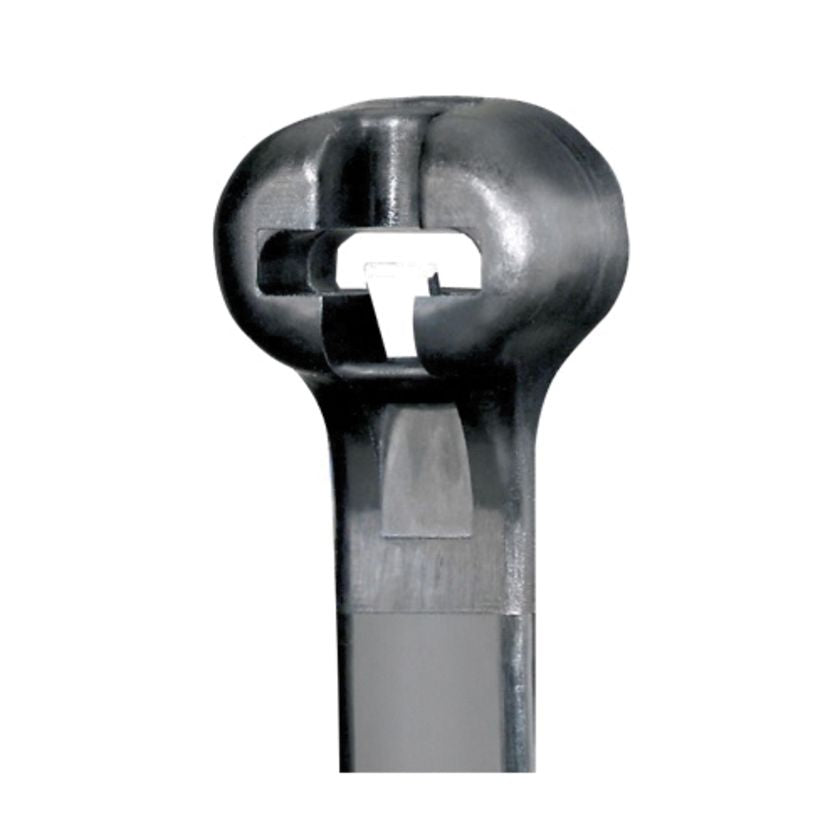

Dây rút Panduit 102mm x 2.41mm Black [BT1M-M0]

Dây rút Panduit 102mm x 2.41mm Black [BT1M-M0]

990 VND
990 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit BT1M-M0

MÔ TẢ SẢN PHẨM

The BT1M-M0 Dome-Top® barb ty, features a unique patented design with its round smooth edges. Paired with the stainless steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Miniature cross section, 4.0” (102mm) length. Appropriate for Indoor/Outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 1000.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Ties
Color Black
Environment Indoor/Outdoor
Sub Brand Dome-Top®
For Use With GTS-E, GS2B-E, PTS, PPTS, STS2
Material Weather Resistant Nylon 6.6
Resistance Properties UV Resistant
Maximum Bundle Diameter (In.) 0.9
Maximum Bundle Diameter (mm) 23
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.06
Minimum Bundle Diameter (mm) 1.5
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 80
Minimum Loop Tensile Strength (lb) 18
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -76
Overall Length (In.) 4
Overall Length (mm) 102
Body Width (In.) 0.095
Body Width (mm) 2.4
Body Thickness (In.) 0.036
Body Thickness (mm) 0.9
Standards Met UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Complaint
