PANDUIT

Dây rút Panduit [BM2M-M]

Dây rút Panduit [BM2M-M]

5.190 VND
5.190 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit BM2M-M

MÔ TẢ SẢN PHẨM

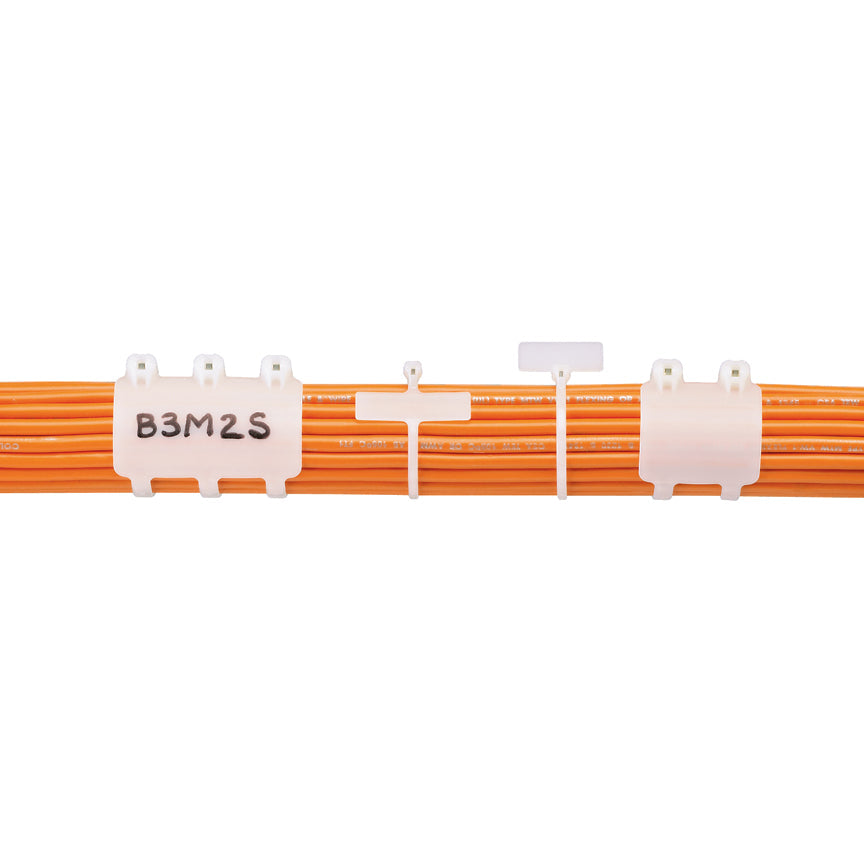

Dome-Top® barb ty marker tie, wrap, miniature cross section, 7.9 (201mm) length, .29 x 1.09 (7.4 x 27.7mm) marker write-on area, nylon 6.6, natural, bulk package.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Sub Brand Dome-Top®
Color Natural
Environment Indoor
Marker Type Wrap
Material Nylon 6.6
Maximum Bundle Diameter (In.) 2
Maximum Bundle Diameter (mm) 51
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.18
Minimum Bundle Diameter (mm) 4.8
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 80
Minimum Loop Tensile Strength (lb) 18
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -70
Overall Length (In.) 7.9
Overall Length (mm) 201
Body Width (In.) 0.095
Body Width (mm) 2.4
Body Thickness (In.) 0.046
Body Thickness (mm) 1.2
Resistance Properties NA
Standards Met UL 62275 Compliant (Type 1, 11),CE Compliant,RoHS Compliant
Application General
