Dây rút Panduit 216mm x 4.7mm Black [BC2S-S10-C0]

Dây rút Panduit 216mm x 4.7mm Black [BC2S-S10-C0]

6.130 VND
6.130 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit BC2S-S10-C0

MÔ TẢ SẢN PHẨM

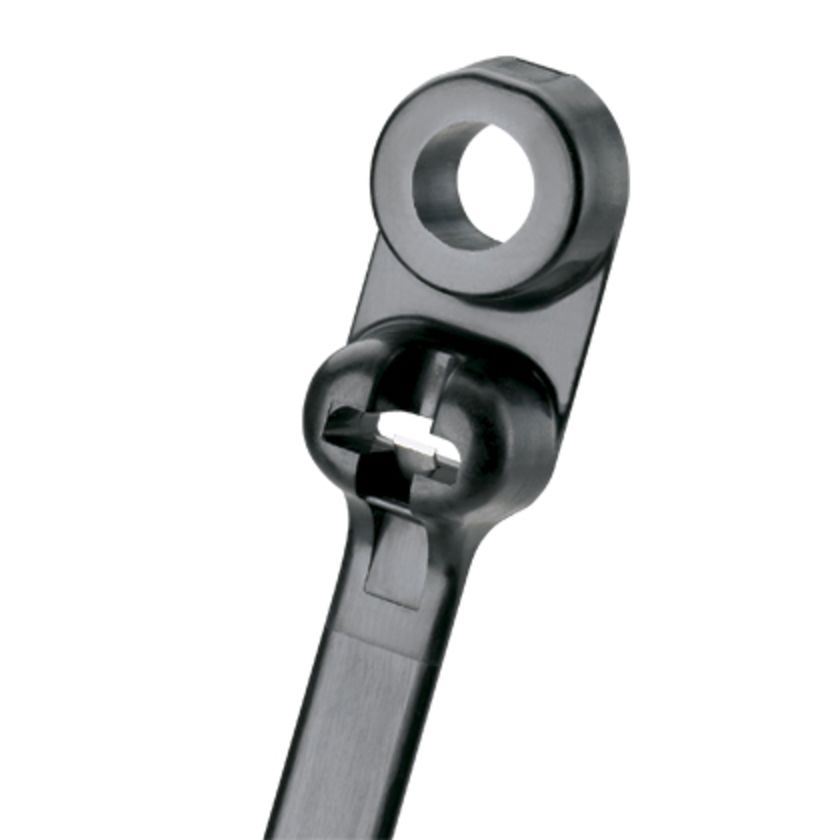

Dome-Top® barb ty clamp tie, standard cross section, #10 (M5) screw, 8.5 (216mm) length, weather resistant nylon 6.6, black, standard package.

_THÔNG SỐ KỸ THUẬT:

Application General
Product Type Cable Tie
Color Black
Environment Indoor/Outdoor
Material Weather Resistant Nylon 6.6
Standards Met UL 62275 Compliant (Type 1, 11)
Screw Size #10 (M5)
Maximum Bundle Diameter (In.) 2
Minimum Bundle Diameter (In.) 0.06
Sub Brand Dome-Top®
Maximum Bundle Diameter (mm) 51
Minimum Bundle Diameter (mm) 1.5
Maximum Installation Temperature (°C) 0
Minimum Installation Temperature (°C) -20
Maximum Installation Temperature (°F) 32
Minimum Installation Temperature (°F) -4
Maximum Operating Temperature (°C) 85
Minimum Operating Temperature (°C) -60
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°F) -76
Overall Length (In.) 8.5
Overall Length (mm) 216
Body Width (In.) 0.185
Body Width (mm) 4.7
Body Thickness (In.) 0.052
Body Thickness (mm) 1.3
Resistance Properties UV Resistant
Minimum Loop Tensile Strength (N) 222
Minimum Loop Tensile Strength (lb) 50
