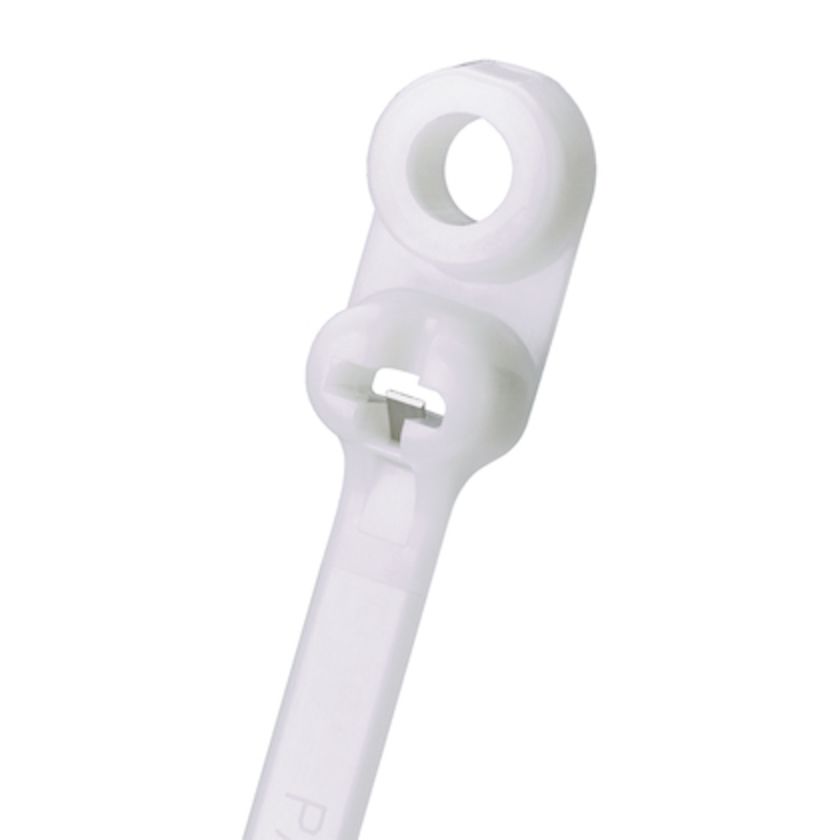

Dây rút Panduit 216mm x 4.7mm Natural [BC2S-S10-C]

Dây rút Panduit 216mm x 4.7mm Natural [BC2S-S10-C]

4.960 VND
4.960 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit BC2S-S10-C

MÔ TẢ SẢN PHẨM

The BC2S-S10-C Dome-Top® barb ty clamp tie, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Standard cross section, 8.5” (261mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.

_THÔNG SỐ KỸ THUẬT:

Application Used to secure a cable bundle to another surface such a control panel, wall or ceiling.
Product Type Locking Clamp Ties
Color Natural
Environment Indoor
For Use With GTS-E, GS2B-E, GTH-E, GS4H-E
Material Nylon 6.6
Standards Met UL 62275 Compliant (Type 2, 21), UL Listed (File #E56854)
Screw Size #10 (M5)
Maximum Bundle Diameter (In.) 2
Minimum Bundle Diameter (In.) 0.06
Sub Brand Dome-Top®
Maximum Bundle Diameter (mm) 51
Minimum Bundle Diameter (mm) 1.5
Maximum Installation Temperature (°C) 0
Minimum Installation Temperature (°C) -20
Maximum Installation Temperature (°F) 32
Minimum Installation Temperature (°F) -4
Maximum Operating Temperature (°C) 85
Minimum Operating Temperature (°C) -60
Maximum Operating Temperature (°F) 185
Minimum Operating Temperature (°F) -76
Mounting Hole Diameter (In.) 0.2
Mounting Hole Diameter (mm) 5.1
Mounting Hole Width (In.) 0.4
Mounting Hole Width (mm) 10.2
Overall Length (In.) 8.5
Overall Length (mm) 216
Body Width (In.) 0.185
Body Width (mm) 4.7
Body Thickness (In.) 0.052
Body Thickness (mm) 1.3
Resistance Properties NA
Minimum Loop Tensile Strength (N) 222
Minimum Loop Tensile Strength (lb) 50
