PANDUIT

Dây rút Panduit [B3M2S-TL0]

Dây rút Panduit [B3M2S-TL0]

36.330 VND
36.330 VND
Sale Sold out

Wire Routing, Management & Protection / Cable Wire Ties Mounts Straps / : Panduit B3M2S-TL0

MÔ TẢ SẢN PHẨM

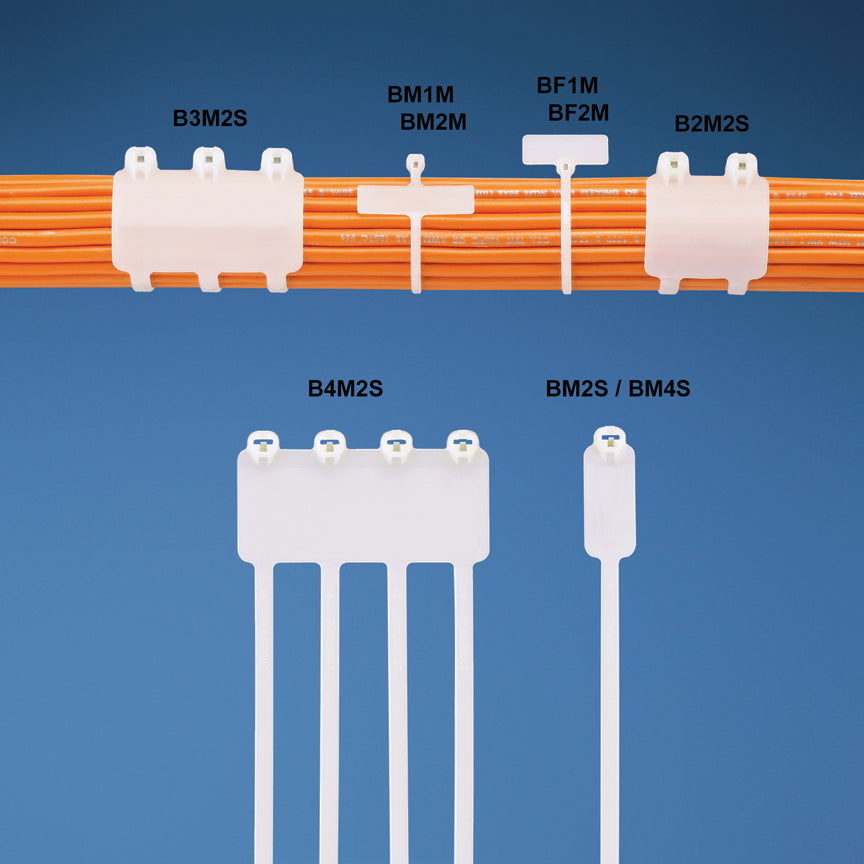

Dome-Top® barb ty marker tie, wrap, standard cross section, 8.0 (203mm) length, 1.81 x .91 (46.0 x 23.1mm) marker write-on area, weather resistant nylon 6.6, black.

_THÔNG SỐ KỸ THUẬT:

Product Type Cable Tie
Sub Brand Dome-Top®
Color Black
Environment Indoor/Outdoor
For Use With Bundles
Marker Type Wrap
Material Weather Resistant Nylon 6.6
Maximum Bundle Diameter (In.) 2
Maximum Bundle Diameter (mm) 51
Maximum Installation Temperature (°C) 0
Maximum Installation Temperature (°F) 32
Maximum Operating Temperature (°C) 85
Maximum Operating Temperature (°F) 185
Minimum Bundle Diameter (In.) 0.37
Minimum Bundle Diameter (mm) 9.5
Minimum Installation Temperature (°C) -20
Minimum Installation Temperature (°F) -4
Minimum Loop Tensile Strength (N) 222
Minimum Loop Tensile Strength (lb) 50
Minimum Operating Temperature (°C) -60
Minimum Operating Temperature (°F) -70
Overall Length (In.) 8
Overall Length (mm) 203
Body Width (In.) 0.185
Body Width (mm) 4.7
Body Thickness (In.) 0.45
Body Thickness (mm) 1.2
Resistance Properties UV Resistant
Standards Met UL 62275 Compliant (Type 1, 11),CE Compliant,RoHS Compliant
Application General
